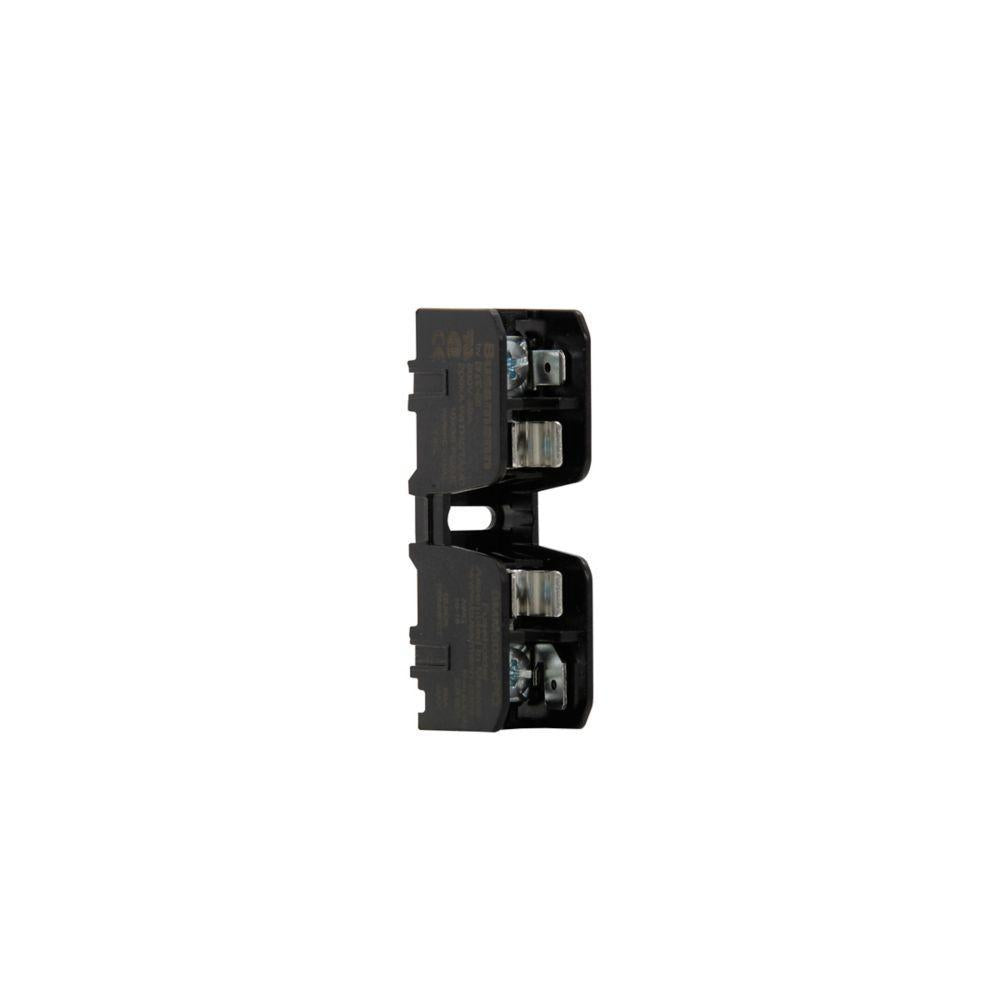

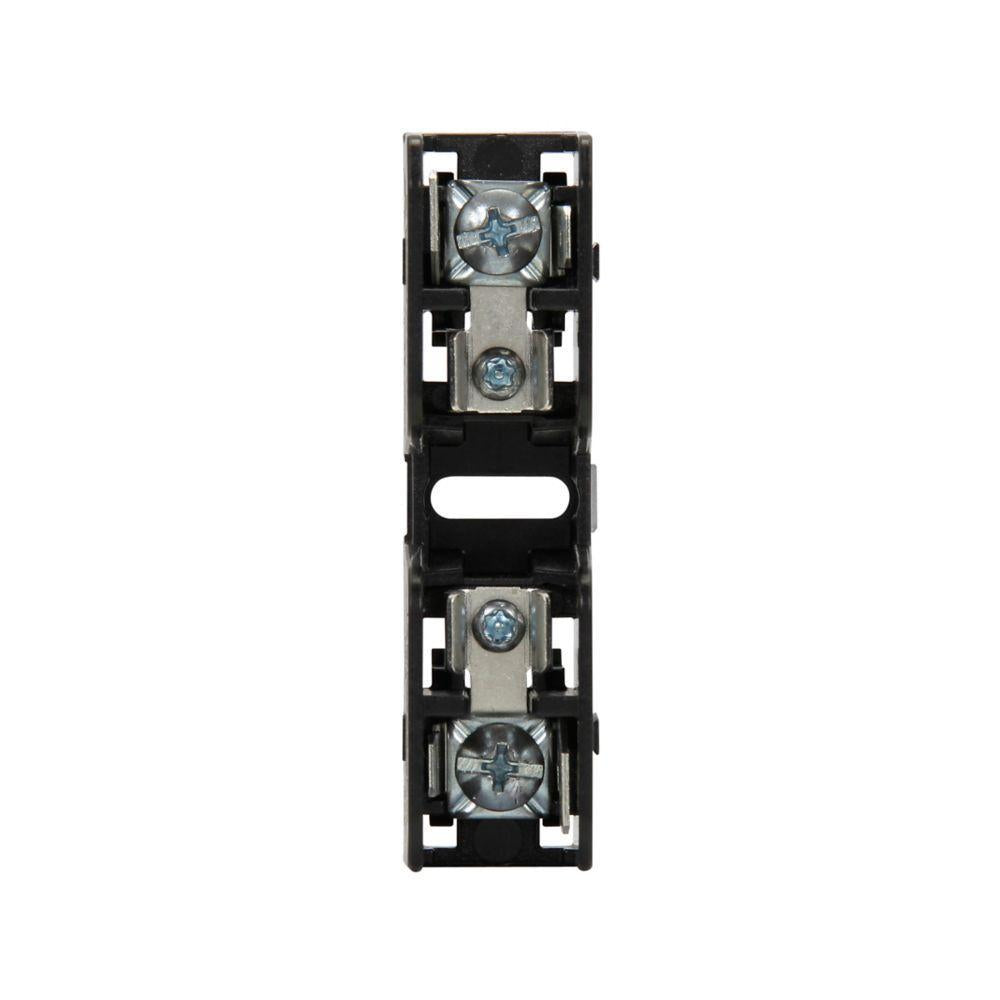

Bussmann BMM603-1PQ Modular Fuse Block 600 Volt 30 Amp 1 Pole

Product Description

The Bussmann BMM603-1PQ is a modular fuse block designed for easy installation and versatility in electrical systems. It operates at a voltage of six hundred volts and supports a maximum current of thirty amps.

• Categorized as a Class CC/Midget Fuse Block.
• Supports wire sizes from eighteen to ten AWG.
• Temperature range: negative forty to one hundred twenty degrees Celsius.

Product Highlights

This fuse block promotes safety and improves efficiency in panel design, reducing labor through its modular construction.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 30 A
• Dimensions: 3 inches x 0.8 inches x 1.3 inches
• Fuse Length: 1.5 inches
• Fuse Diameter: 0.406 inches
• Wire Size: 18 to 10 AWG
• Number of Poles: 1
• Connection Type: 1/4 inch Quick-Connect/Pressure Plate
• Mounting Type: DIN Rail/Panel
• Material: Thermoplastic
