Product Description

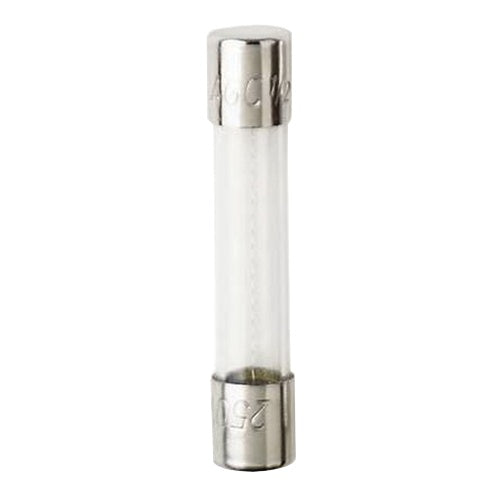

The Bussmann AGC-10-R is a fast acting fuse designed for use in electronic circuits. This fuse is rated for ten amps and supports voltages up to two hundred fifty volts AC. It features a cylindrical glass tube construction with nickel-plated brass end caps for improved durability and stability.
- Fast acting; ideal for electronic applications
- Cylindrical shape with ferrule end connections
- UL listed and CSA certified
Product Highlights
This fuse is crucial for protecting circuits in various applications including safety and security systems. The Bussmann AGC-10-R effectively prevents overcurrent situations with a rapid response time.
Product Information
Standard Information
-
Manufacturer: Bussmann
-
Part Number: AGC-10-R
Technical Specifications
-
Voltage Rating: 250 Vac
-
Amperage Rating: 10 Amps
-
Type: Fast-acting glass tube fuse
-
Diameter: 1/4 Inch
-
Length: 1-1/4 Inch
-
Interrupt Rating: 200 AIC at 250 Vac
-
Construction: Glass tube with nickel-plated brass end caps
-
Response Time: 60 seconds at 135%; 120 seconds at 200%
