BURNDY BURNDY YS30 300 kcmil CU Long Barrel Compression Splice UL/CSA

BURNDY YS30 300 kcmil CU Long Barrel Compression Splice UL/CSA

Name: BURNDY YS30 300 kcmil CU Long Barrel Compression Splice UL/CSA
Brand: BURNDY
SKU: YS30
Price: 25.24 USD
Availability: InStock

Brand: BURNDY

SKU: YS30

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$25.24; $25.24
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

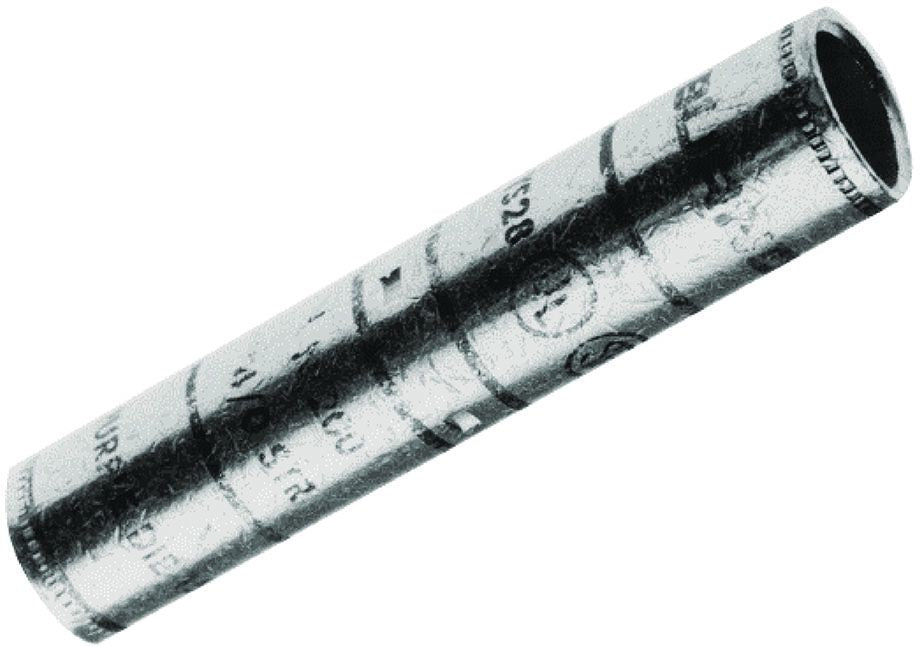

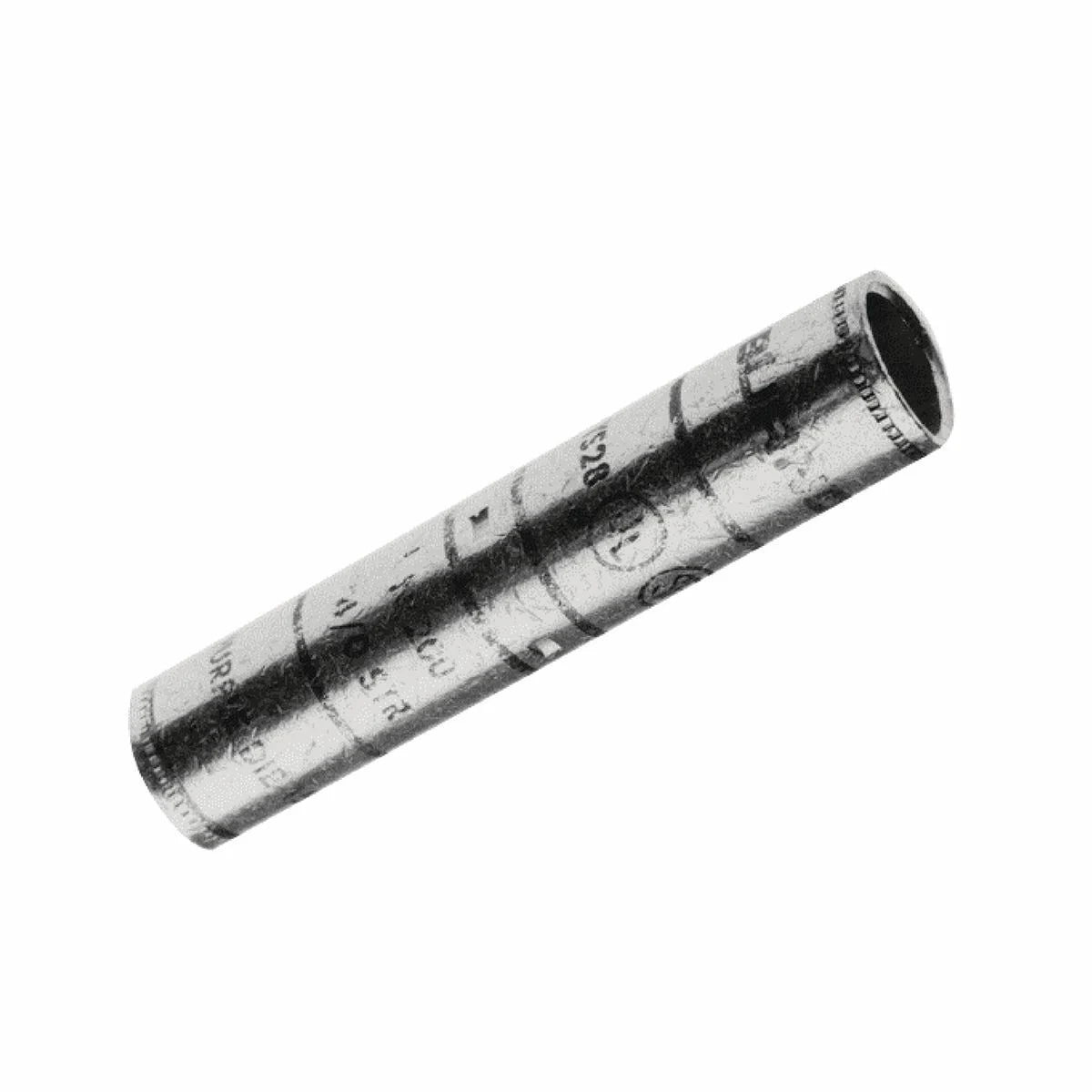

The BURNDY YS30 is a compression cable splice designed for reliable wire connections. This long barrel splice is rated for up to thirty-five kilovolts and is constructed from copper. The product features an internal chamfer to facilitate easier wire insertion.

Rated Voltage: 35 kV
Conductor Size: 300 kcmil
UL Listed for 90°C applications

Product Highlights

This splice is ideal for heavy-duty applications and provides a high pull-out force for enhanced mechanical stability. It is suitable for both standard and high voltage requirements.

Product Information

Standard Information

Brand: BURNDY
Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

Catalog Number: YS30
Material: Copper
Finish: Tin-Plated
Application: Wire Splice
Country of Origin: United States
Die Index: 17 or 298
Wire Strip Length: 2-1/16 inches
Cross Reference Products: C-300, 54814
