BURNDY YS27A1 3/0 AWG AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX, End Cap, UL/CSA, 90°C, Up to 35kV, Ruby Color Code, 467 Die Index

Product Description

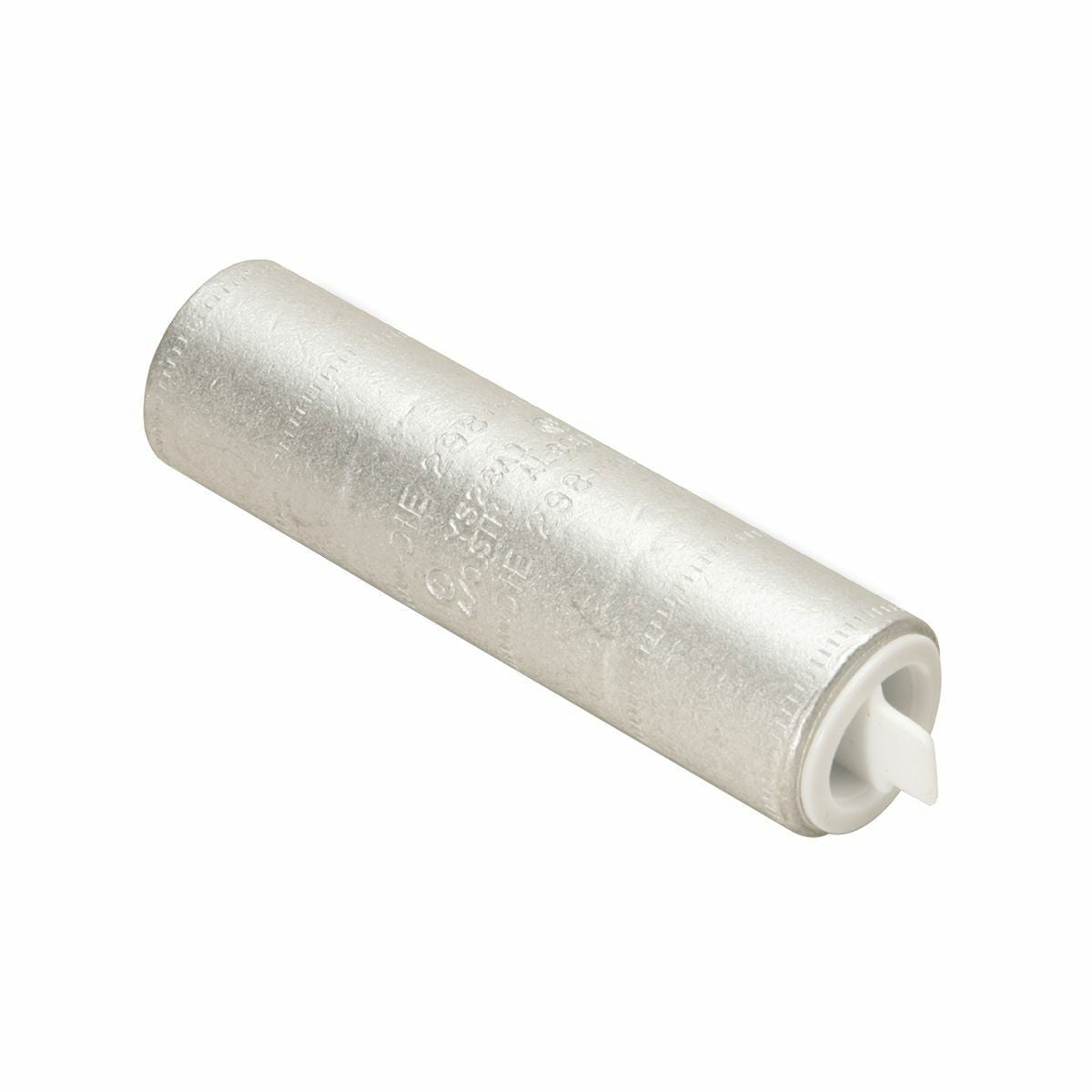

The BURNDY YS27A1 is a compression cable splice designed for 3/0 AWG aluminum or stranded copper conductors. It is made from high-conductivity wrought aluminum for effective electrical performance. This connector is UL and CSA approved for use in various applications up to thirty-five kilovolts.

• Manufactured with a tin-plated finish for corrosion resistance.
• Prefilled with PENETROX oxide inhibiting compound.
• Internally beveled barrel design for easy cable entry.

Product Highlights

This product offers excellent crimping properties and is marked for easy identification of wire size and die index. It can accommodate conductors ranging from twelve stranded to one thousand KCMIL in standard and heavy-duty applications.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YS27A1
• Material: Aluminum
• Temperature Rating: 194°F
• Voltage Rating: 35kV
• Die Index: 467
• Application: Wire Splice
• UPC: 781810757208
• Special Features: Color-coded end caps for easy identification, designed for effective electrical connection.
