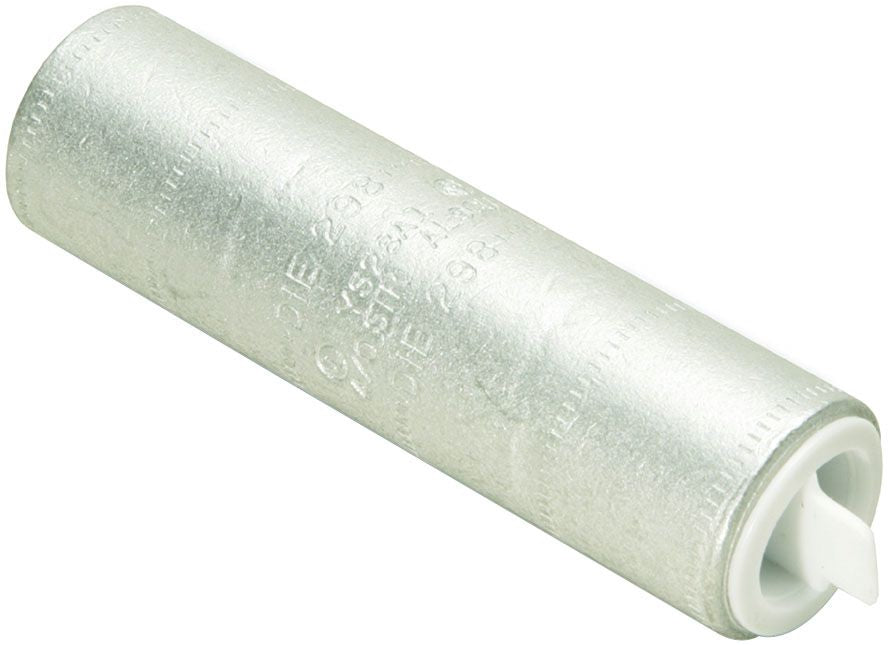

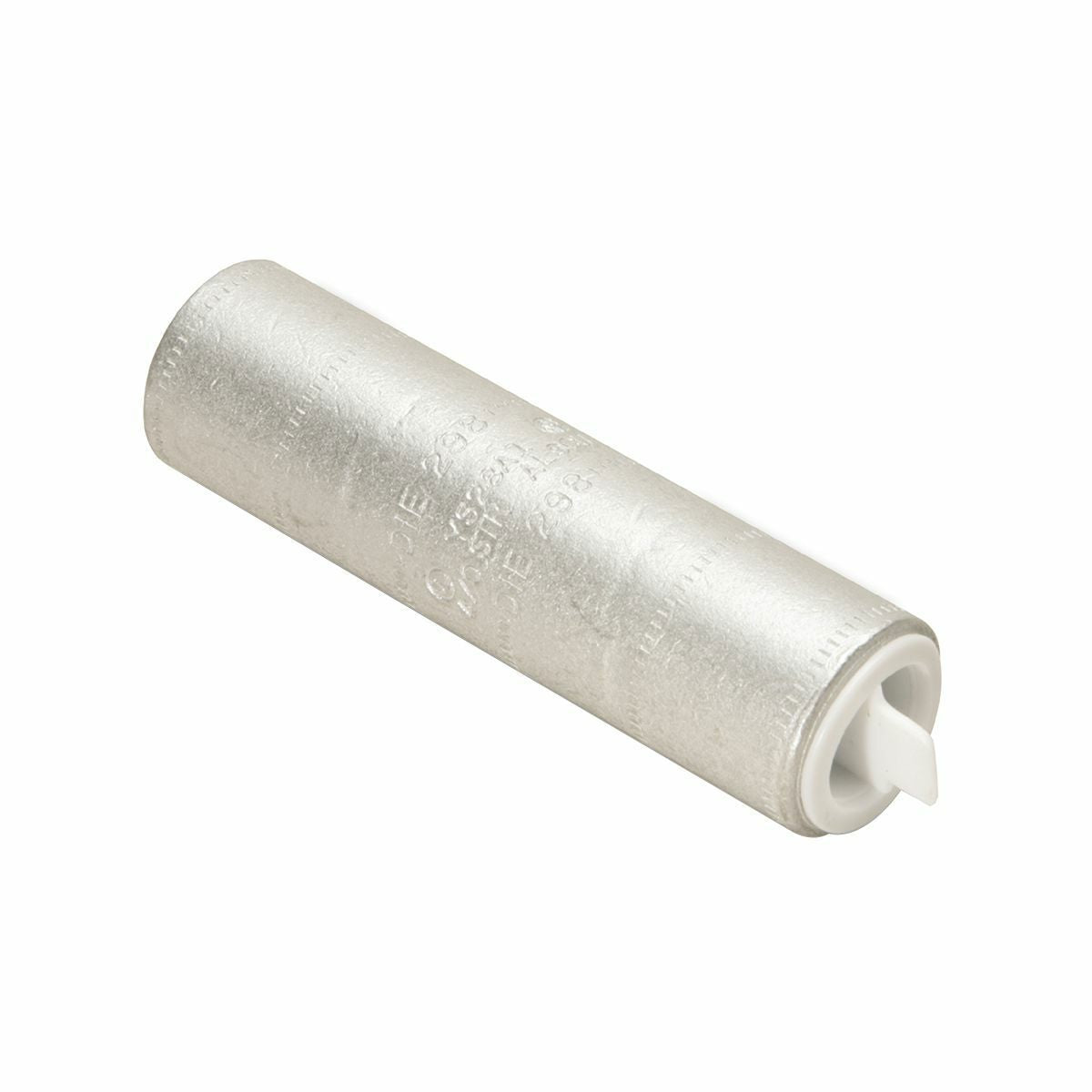

Burndy YS26A1 2/0 AWG AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX?, End Cap, UL/CSA, 90°C, Up to 35kV, Olive Color Code

Product Description

The Burndy YS26A1 is a compression cable splice designed for use in electrical applications. It features a center wire stop that ensures a secure connection for 2/0 AWG aluminum conductors and is also compatible with 2/0 AWG stranded copper conductors. The splice is made from high-quality electro-tin plated aluminum, which provides excellent conductivity and resistance to corrosion.

• Voltage rating of thirty-five kilovolts
• Temperature rating of ninety degrees Celsius
• Meets UL 486A-486B standards

Product Highlights

This splice is an essential component for reliable electrical connections. It is specifically engineered to accommodate a variety of conductor sizes, ensuring versatility in electrical installations.

Product Information

Standard Information

• Catalog Number: YS26A1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Finish: Tin-Plated
• Application: Wire Splice
• Country of Origin: United States
• Wire Strip Length: 1-3/8 inches
• Die Index: 297
• Special Features: Includes prefilled PENETROX compound for improved conductivity
• Cross Reference Products: 60536
