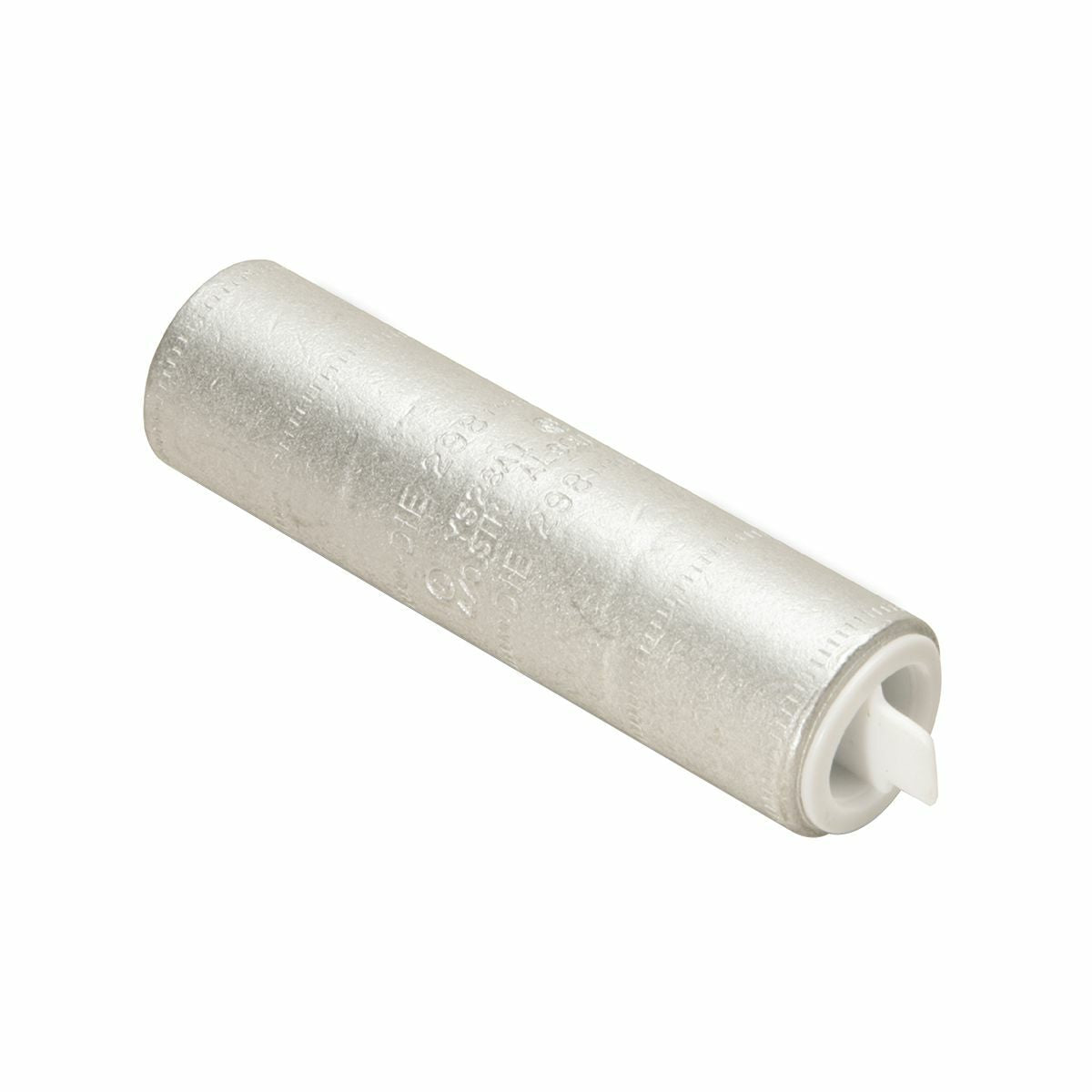

BURNDY YS25A1 1/0 AWG AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX, End Cap, UL/CSA, 90ºC, Up to 35kV, Tan Color Code, 296 Die Index

Product Description

The BURNDY YS25A1 is an aluminum splice designed for 1/0 AWG aluminum and stranded copper conductors. This splice features a center wire stop and is rated for voltages up to thirty-five kilovolts. The product is UL and CSA approved, ensuring it meets industry standards.

• Compatible with stranded aluminum or copper conductors.
• High-conductivity, tin-plated aluminum construction.
• Simple installation with an internally bevelled barrel for easy cable entry.

Product Highlights

This splice provides exceptional reliability and performance in electrical applications. It is perfect for a variety of wire connection tasks in both residential and industrial settings.

Product Information

Standard Information

• Catalog Number: YS25A1
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Voltage Rating: 35 kV
• Temperature Rating: 194°F
• Material: Aluminum
• Special Features: Prefilled with PENETROX oxide inhibiting compound, color-coded end caps for easy identification
• Country of Origin: USA
• Application: Wire Splice
• UPC: 781810757055
• Cross Reference Products: ASN-1/0, ASC1/0T
