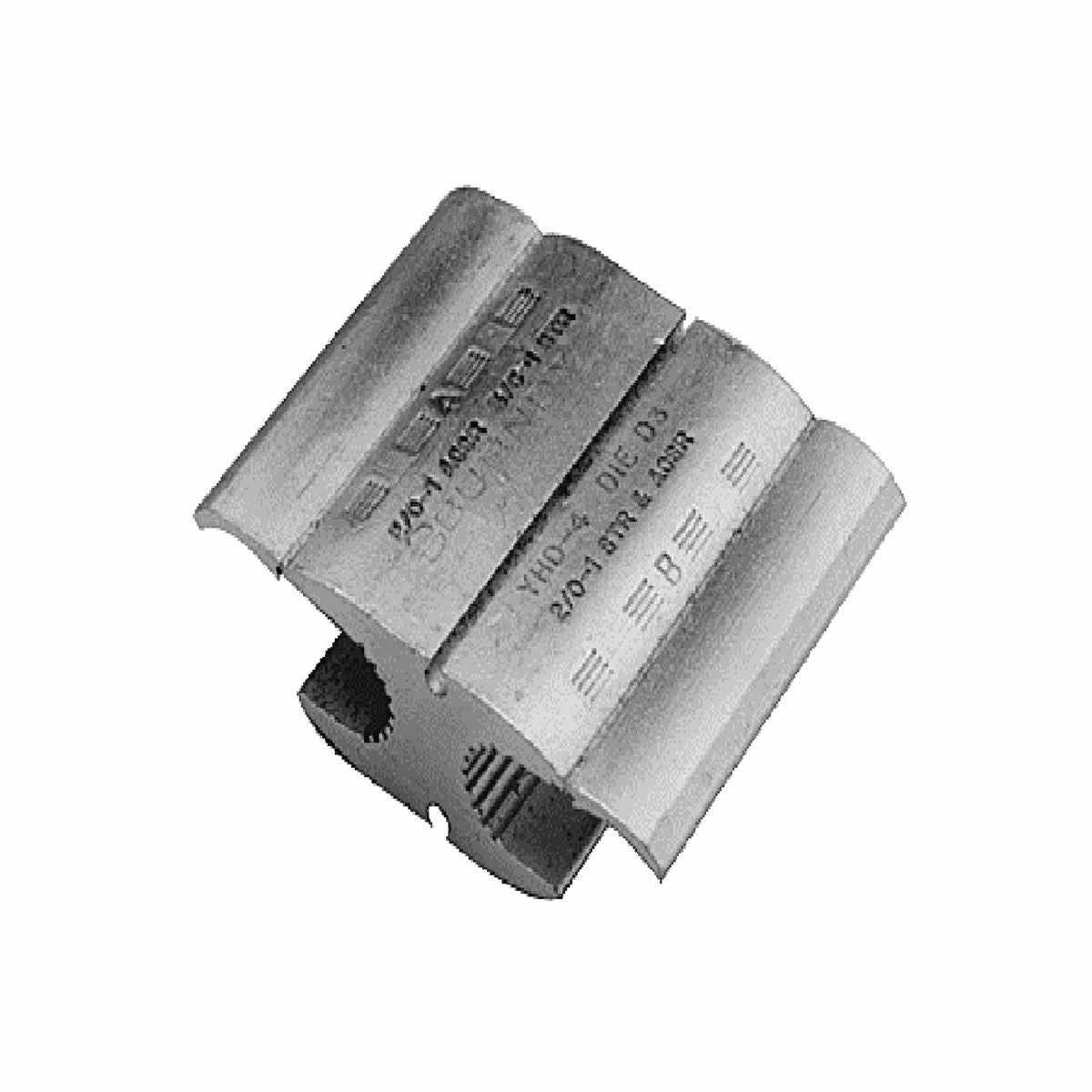

BURNDY YHD5 Compression Line Tap Connector for Aluminum to Copper and Aluminum to Aluminum applications

Product Description

The BURNDY YHD5 is a compression line tap connector designed for versatile conductor applications. This connector is suitable for joining aluminum to copper as well as aluminum to aluminum conductors. The YHD5 is built to meet specific industry requirements and is a reliable choice for electrical connections.

• Compatible with 6 AWG to 4/0 ACSR solid conductors.
• Features a C groove for compatibility with street lighting applications.
• Designed for use with Burndy mechanical or hydraulic tools.

Product Highlights

The YHD5 connector provides an effective solution for various electrical setups where aluminum and copper conductor combinations are necessary.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YHD5
• Material: Aluminum
• Application: For combinations of aluminum to copper and aluminum to aluminum conductors
• Conductor Size (tap Range): 6 to 1/0 AWG
• Conductor Size (run Range): 3/0 AWG to 300 KCMIL
• Cable Diameter Range (tap): 0.162 to 0.26 inches
• Cable Diameter Range (run): 0.475 to 0.563 inches
• Country of Origin: Mexico
