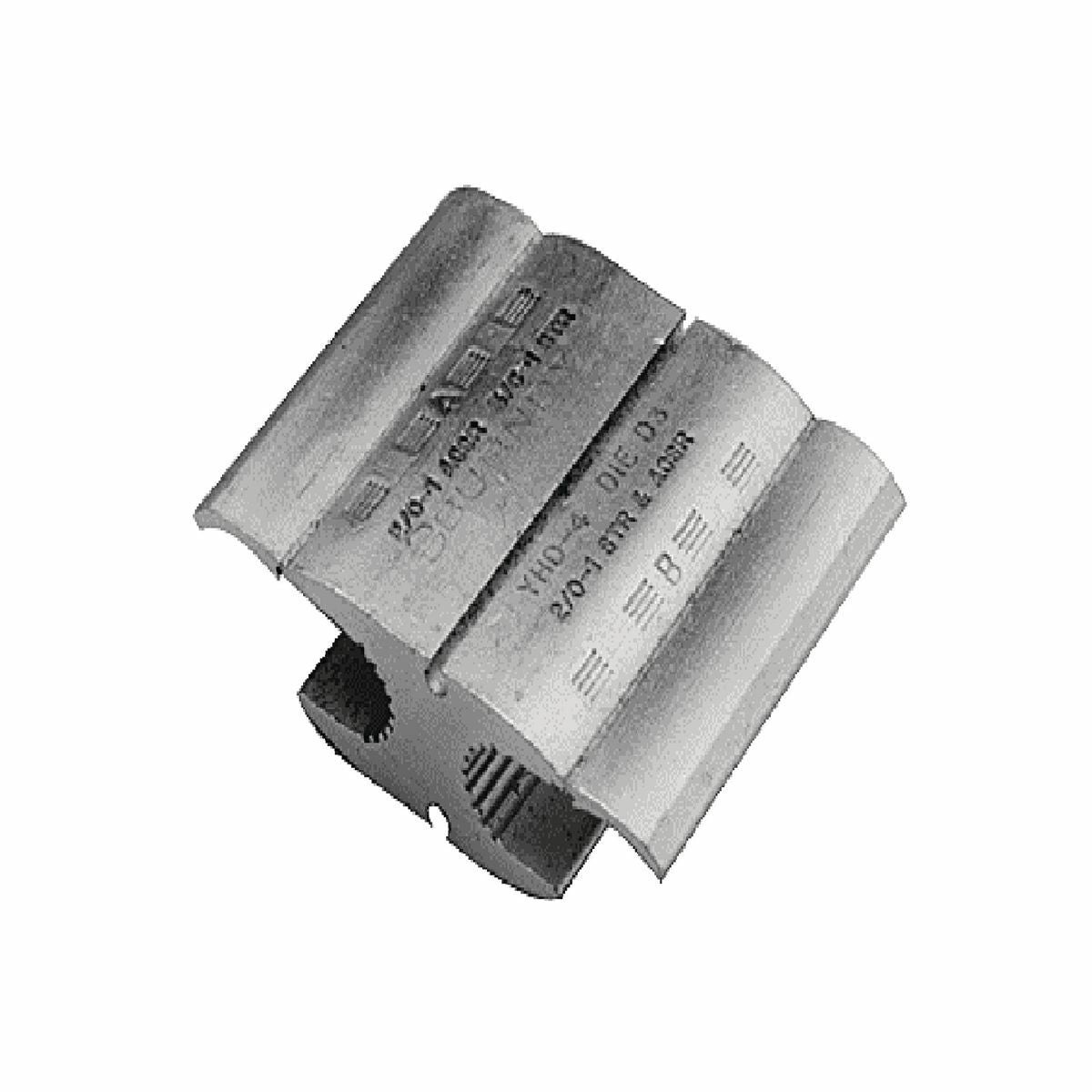

BURNDY YHD3 Compression Line Tap Connector for Aluminum to Copper and Aluminum to Aluminum applications

Product Description

The BURNDY YHD3 is a Compression Line Tap Connector designed for aluminum to copper and aluminum to aluminum applications. It meets industry standards for reliable connectivity and is suitable for both high and low voltage systems.

• Suitable for 6 AWG to 4/0 ACSR conductor sizes.
• Cable diameter range for tap: 0.162 inches to 0.26 inches.
• Compatible with BURNDY mechanical and hydraulic tools.

Product Highlights

This connector features a C groove for effective use in street lighting setups.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YHD3
• Country of Origin: Mexico
• Material: Aluminum
• Application: For accommodating combinations of aluminum to copper, and aluminum to aluminum conductors
• Die Index: D3
• Shape: H
• Conductor Size (tap range): 6 to 1/0 AWG
• Conductor Size (run range): 1/0 to 4/0 AWG
