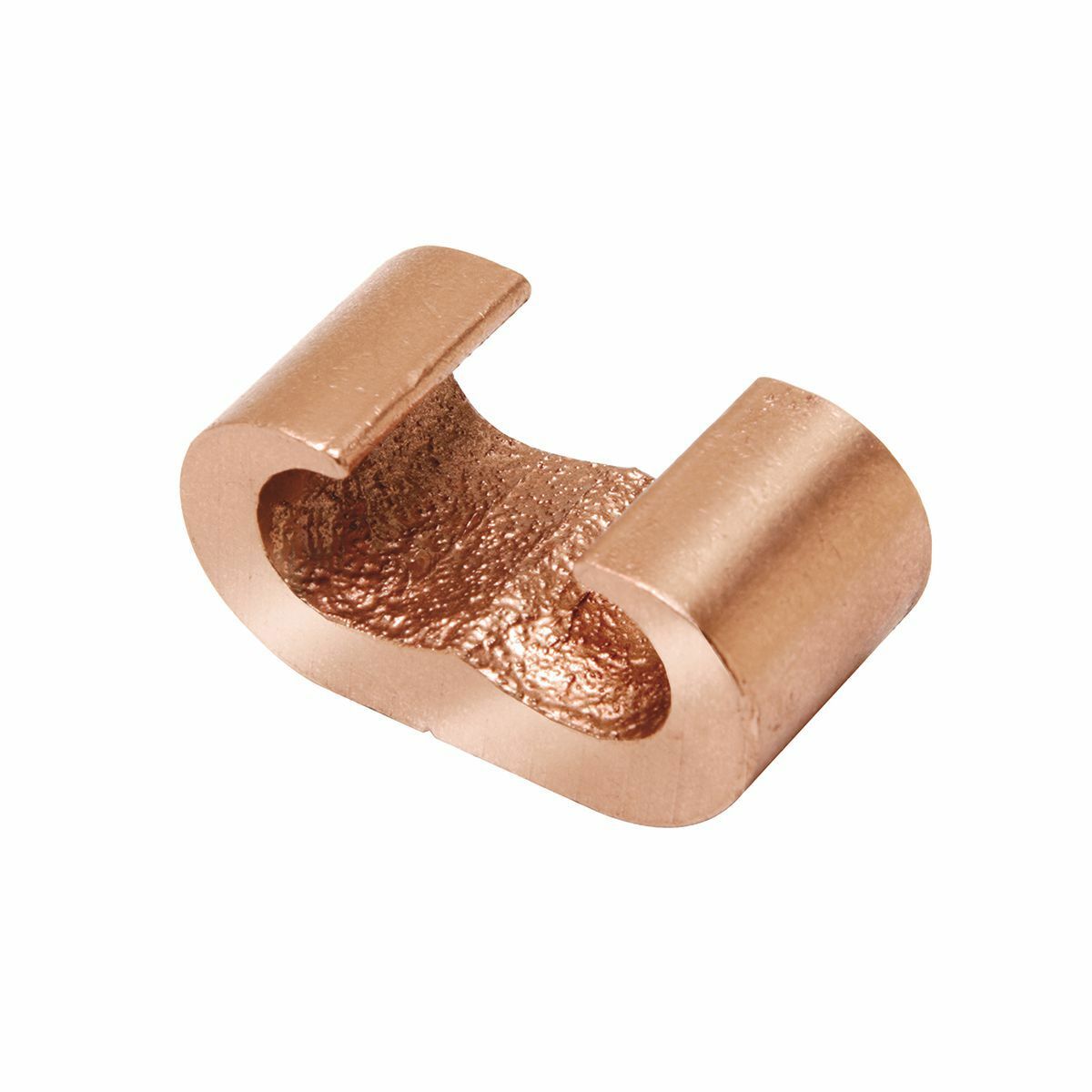

BURNDY YGHC29C26 Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2 or 5/8 Rod (Run) & 6 AWG(Sol) - 2/0 AWG(Str) (Tap)

Product Description

The BURNDY YGHC29C26 is a copper compression C connector designed for secure electrical connections. It accommodates a wide range of cable sizes. Use this connector for applications involving direct burial cables and for effective grounding solutions.

• Designed for minimum run conductor size of 3/0 AWG stranded
• Suitable for maximum run conductor size of 250 KCMIL
• Compatible with tap sizes ranging from 6 AWG solid to 2/0 AWG stranded

Product Highlights

This connector features irreversible compression for reliable performance. UL listed for direct burial in earth or concrete.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States

Technical Specifications

• Catalog Number: YGHC29C26
• Material: Copper
• Application: For direct burial cables
• Special Features: Accommodates cable combinations from #6 AWG solid to 500 KCMIL
• Ground Rod Size: 1/2 - 5/8 inches
• Die Index: 997
• UPC: 781810221044
• Direct Burial Approved: Yes
