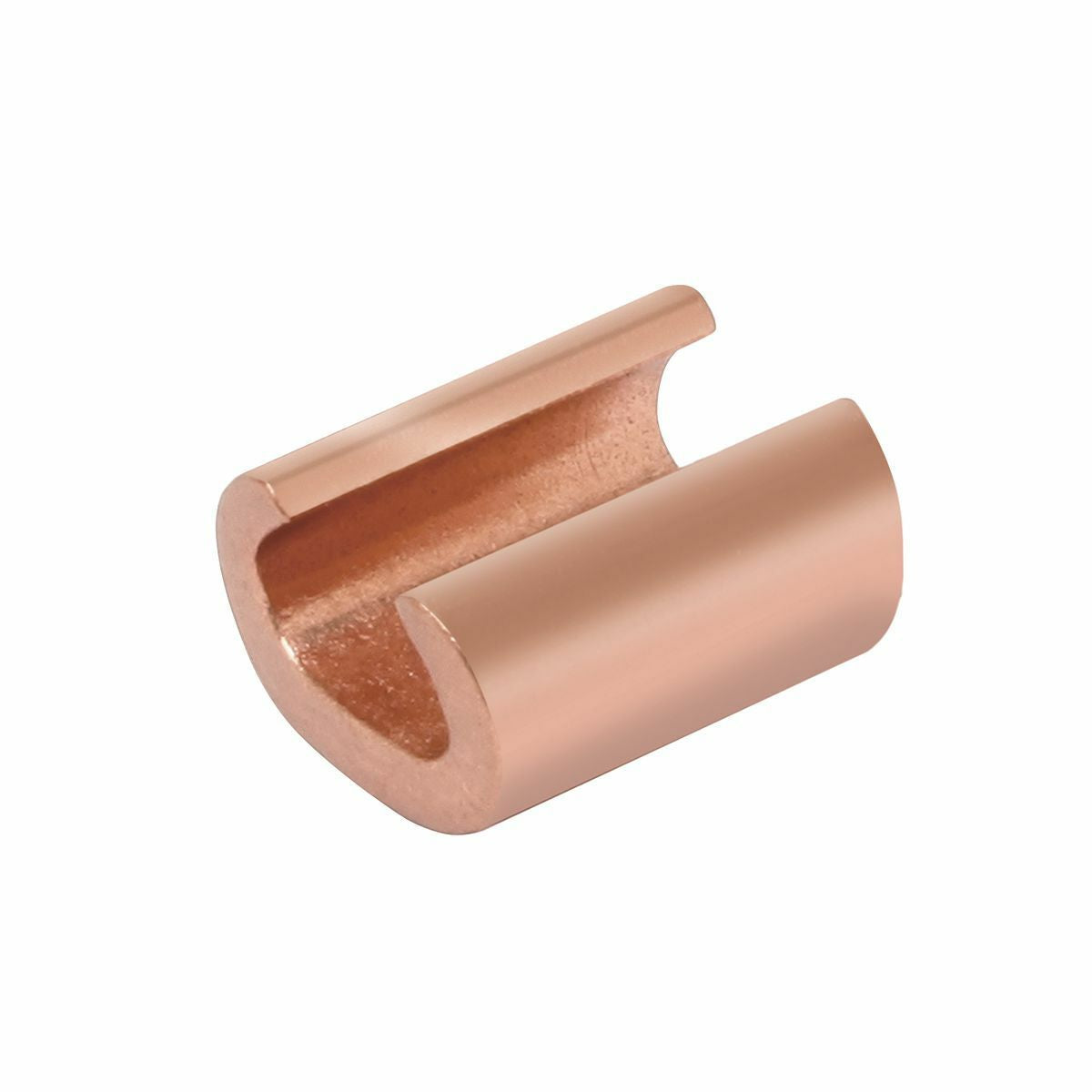

BURNDY YC4C6 CU Compression C Shape Compression Connector 600 Volts to 35 Kv Run: 6 Sol. - 4 Str., Tap: 6 Sol. - 6 Str.

Product Description

The BURNDY YC4C6 is a CU Compression C shape compression connector designed for use in electrical wiring applications. This connector supports voltage ratings from 600 volts to 35 kilovolts. It is suitable for connecting six stranded copper conductors.

• Compatible with conductor sizes between six and four AWG for the run type.
• Supports six AWG for stranded or solid tap connections.
• Manufactured from high conductivity wrought copper for effective conductivity.

Product Highlights

This connector is made for making tap or parallel copper connections and features a range-taking design to reduce inventory requirements.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YC4C6
• Voltage Rating: 600 Volts to 35 Kilovolts
• Conductor Material: Copper
• Run Conductor Size: 6 AWG Solid to 4 AWG Stranded
• Tap Conductor Size: 6 AWG Solid/Stranded
• Shape: C
• Approval: UL, CSA
• Country of Origin: United States
