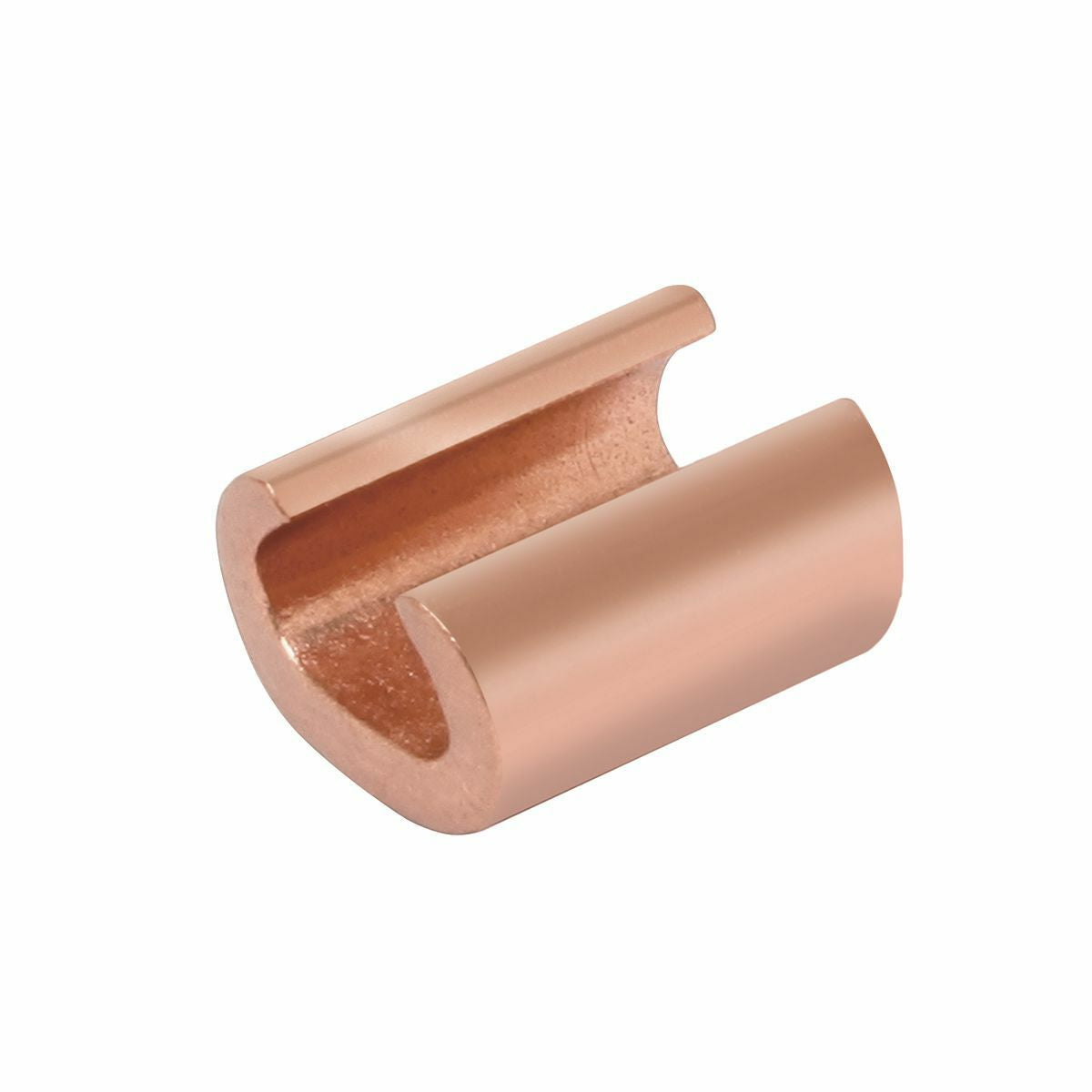

Burndy YC2C4 CU Compression C Shape Compression Connector 600 Volts to 35 Kv Run: 2 Sol. - 2 Str., Tap: 8 Sol. - 4 Str.

Product Description

The Burndy YC2C4 is a CU compression C shape compression connector designed for reliable electrical connections. It is suitable for voltage ratings up to 35 kilovolts and can handle two solid conductors of size 2 AWG. This connector is ideal for tap or parallel copper connections, providing efficiency and reliability.

• Voltage Rating: 600 Volts to 35 Kilovolts
• Conductor Range: Run - 2 AWG Solid/Stranded, Tap - 8 AWG Solid, 4 AWG Stranded
• Materials Used: High conductivity wrought copper

Product Highlights

This connector lowers inventory requirements while maintaining a compact size for easy insulation and taping. It is manufactured from high conductivity copper for excellent electrical performance.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Country of Origin: United States
• Made in USA: Yes
• Special Features: Features range-taking capability; economical low installed costs

Technical Specifications

• Catalog Number: YC2C4
• Material: Copper
• Standards Compliance: UL 486A; UL 486B
• Item Type: YC-C Series
• Cross Reference Products: ULT-6-Z
