BURNDY YA8CLNT6 8 AWG CU, One Hole, #6 Standard Barrel, Inspection Window, Narrow Tongue Internal Chamfer, Tin Plated, UL/CSA, 90?C, Up to 35kV, RED Color Code, 49 Die Index.

Product Description

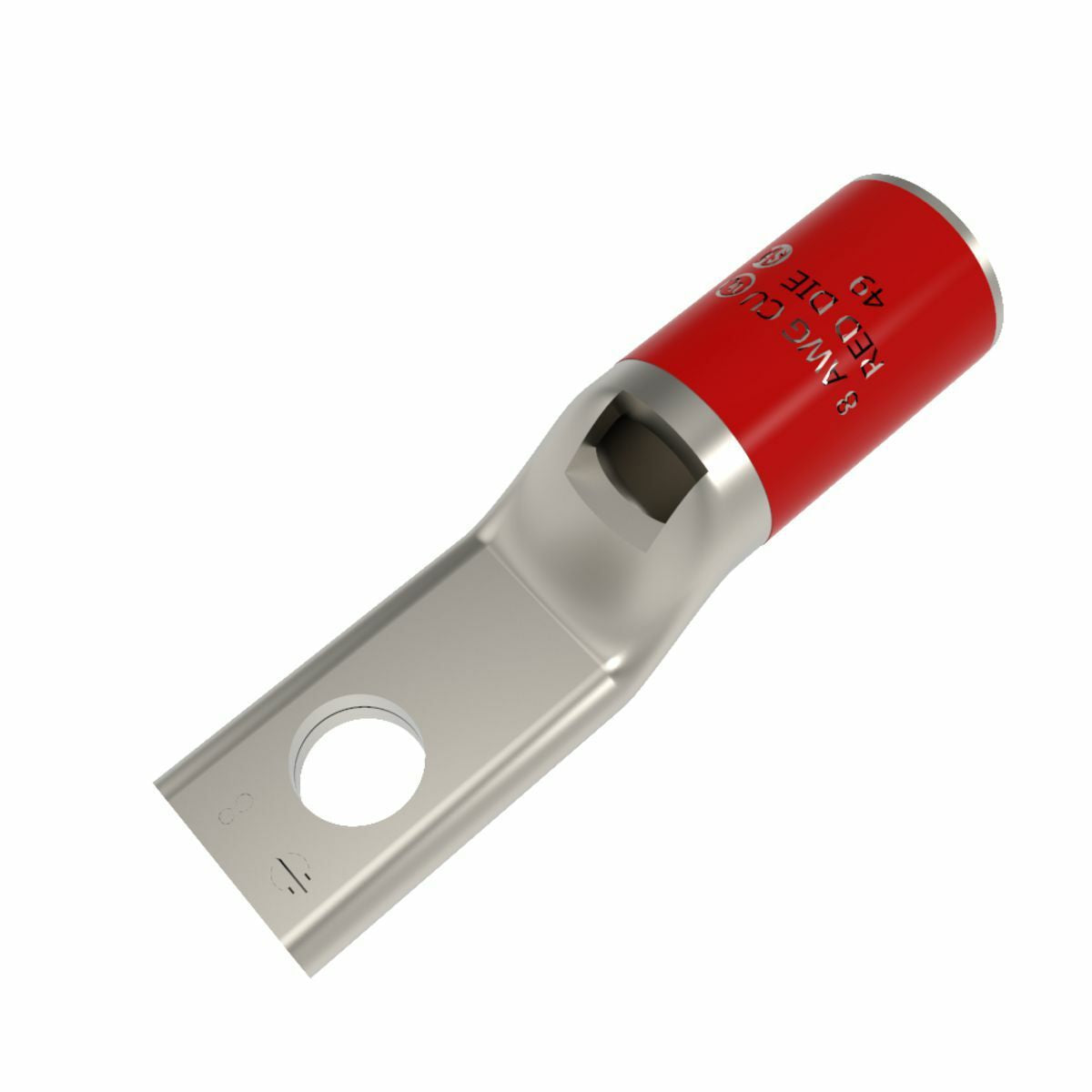

The BURNDY YA8CLNT6 is an 8 AWG copper terminal lug designed for reliable wire termination. This product features a one-hole design with a standard barrel and an inspection window. The narrow tongue internal chamfer allows for easy connection and ensures a secure fit. It is UL/CSA approved, making it suitable for use in various electrical applications.

• Voltage rating: Up to thirty-five kilovolt.
• Made from electrolytic tin-plated copper for durability.
• Insulation type: Non-insulated.

Product Highlights

This terminal lug is compliant with standards UL 486A-486B and is manufactured in the United States. It supports both residential and commercial electrical installations.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA8CLNT6
• Country of Origin: United States
• Material: Copper
• Voltage Rating: 35
• Special Features: UL Listed 90°C, 600V - 35KV
• Made in USA: Yes
• Application: Wire Termination
• UPC: 781810034309
