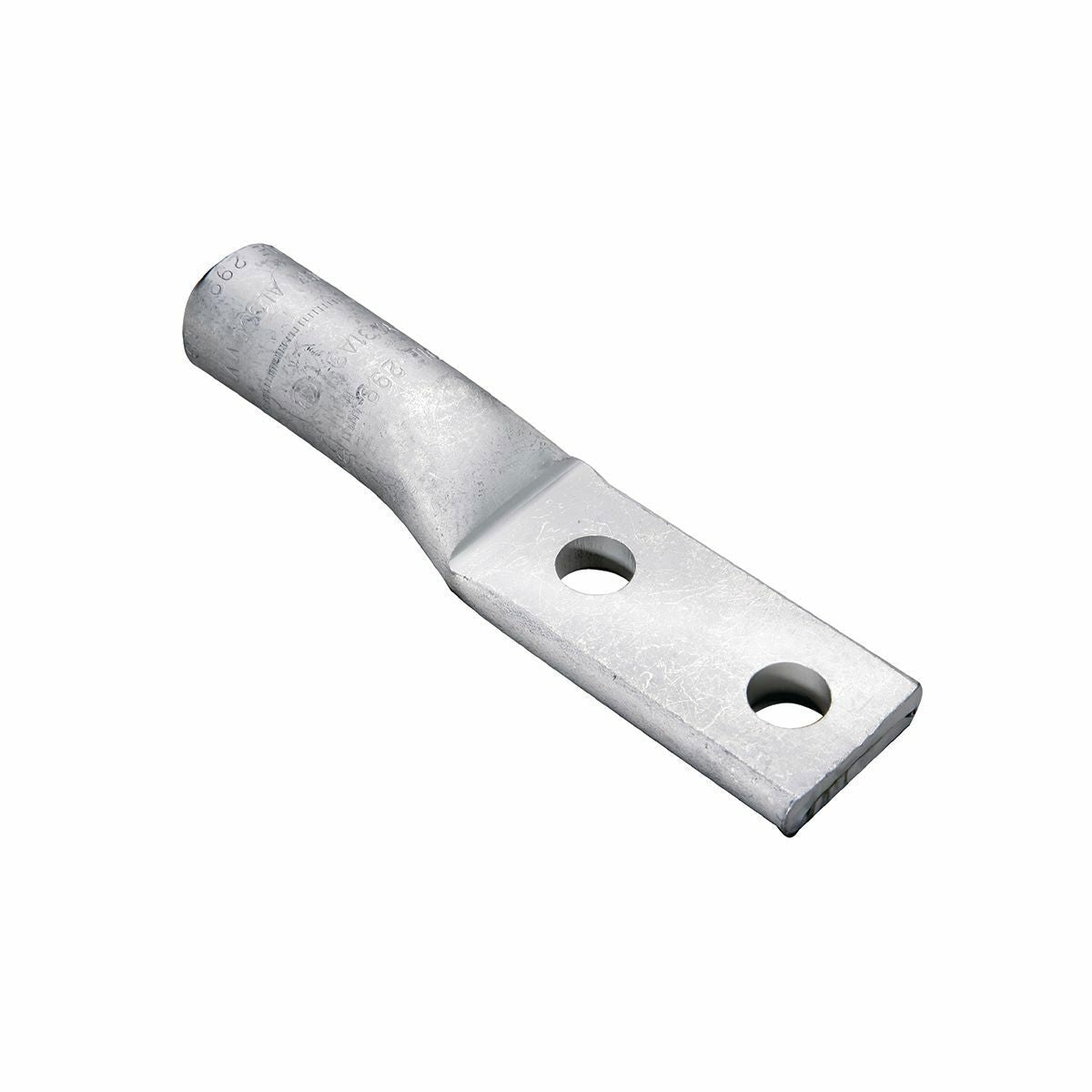

BURNDY YA36A3 600 kcmil, AL Terminal, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing

Product Description

The BURNDY YA36A3 is a terminal designed for wire termination. It supports aluminum conductors and is suitable for use with sizes up to 600 kcmil. This terminal features a two-hole design with a half-inch stud size and a hole spacing of one and three-quarters inches. It is rated for 600 volts to 35 kilovolts, making it ideal for various electrical applications.

• Compatible with aluminum and copper conductors.
• UL and CSA approved for safety.
• Includes a color-coded end cap.

Product Highlights

Use this terminal for secure wire connections in industrial and commercial applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: YA36A3
• Material: Aluminum
• Voltage Rating: 35 kV
• Special Features: UL Listed 90 Degrees C, Tongue Angle: Straight
• Country of Origin: Mexico
• Application: Wire Termination
• Cross Reference Products: ALND-600-12-134, 60275
• UPC: 781810761250
