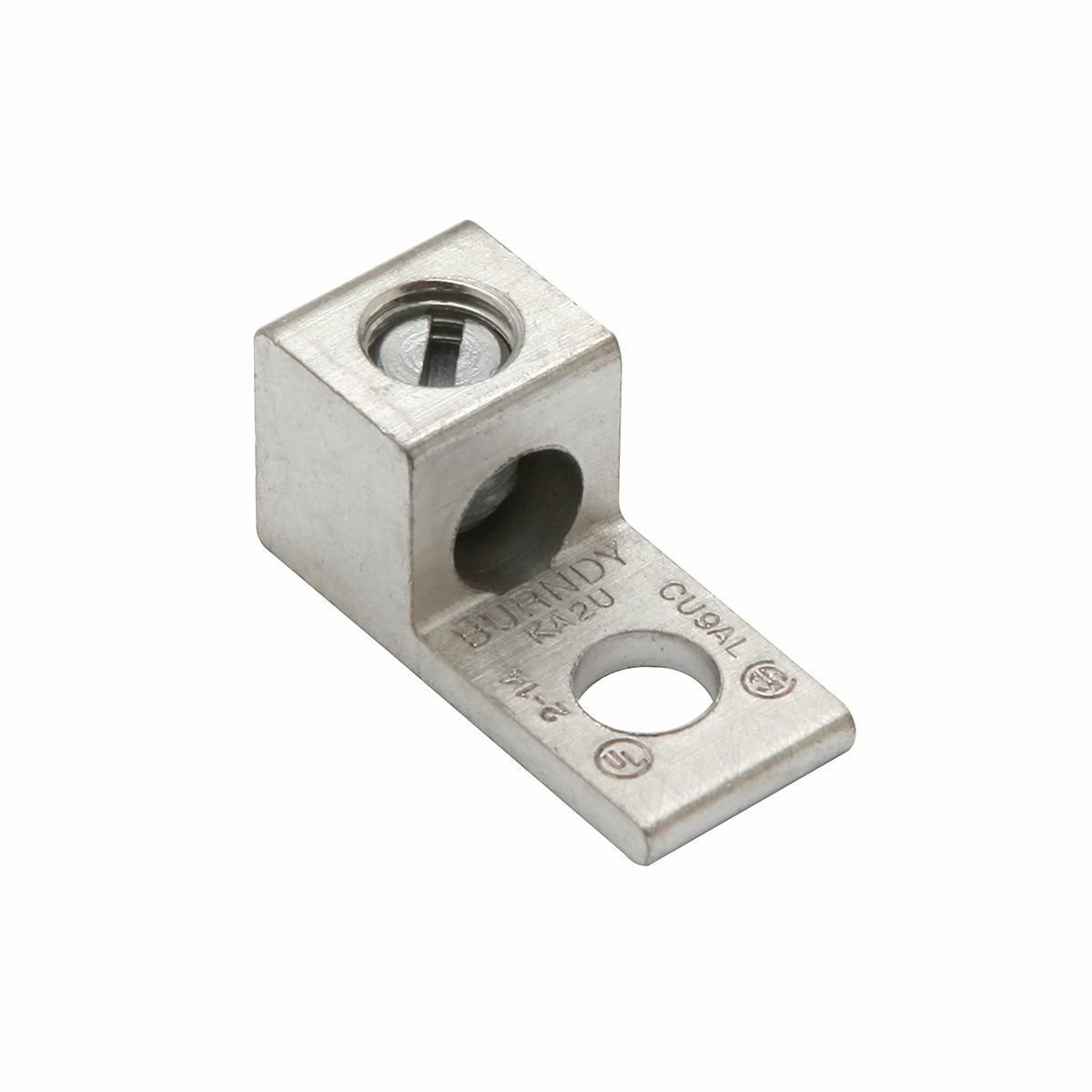

BURNDY KA2U Aluminum Universal Terminal, 1 Hole, 14-2 AWG (Str), 1/4 Stud, 1 Screw

Product Description

The BURNDY KA2U is an aluminum universal terminal designed for efficient connection of conductors. This terminal is suitable for both aluminum and copper wiring. It accommodates stranded conductors from fourteen to two AWG. Its design features a one-hole layout for easy installation and a bolt size of one quarter inch.

• Compatible with aluminum and copper conductors
• Constructed from high-strength aluminum alloy
• Electro-tin plated for low contact resistance

Product Highlights

This terminal provides a reliable connection method for electrical systems, making it ideal for both residential and commercial applications.

Product Information

Standard Information

• Catalog Number: KA2U
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Material: Aluminum
• Application: For aluminum and copper conductors
• Voltage Rating: 600 volts
• Installation Torque: 50 inch-pounds
• Temperature Rating: 194 degrees Fahrenheit
• Number of Conductors: 1
• Stud Size: 1/4 inch
• Length: 1.16 inches
