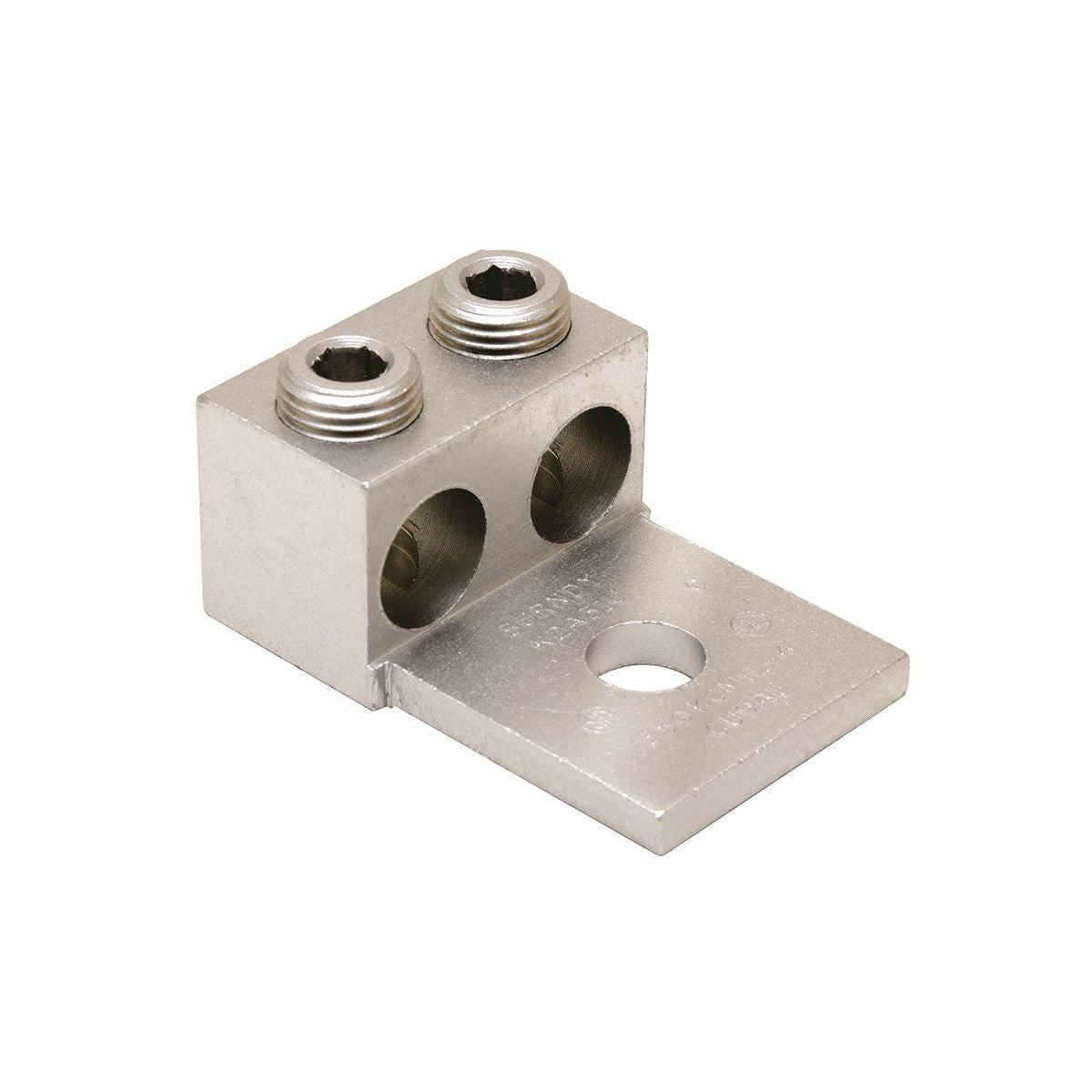

BURNDY K2A31U Aluminum Universal Terminal 2 Conductor 6 AWG (Str)-350 kcmil 1/2 Stud

Product Description

The BURNDY K2A31U is an aluminum universal terminal designed to connect 2 conductors with a size range of six AWG stranded to three hundred fifty kcmil. The terminal is suitable for both aluminum and copper conductors. The design incorporates a half-inch stud size with two screws for reliable connections.

• Compatible with aluminum and copper conductors
• Constructed from high strength aluminum alloy
• Electro tin-plated for low contact resistance

Product Highlights

This terminal lug features a robust structure suitable for demanding electrical applications.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: K2A31U
• Number of Conductors: 2
• Material: Aluminum
• Application: For Aluminum And Copper Conductors
• Special Features: Dual-rated, constructed from high strength aluminum alloy, electro tin-plated
• Length: 2.88 inches
• Width: 1.94 inches
• Height: 1.25 inches
• Temperature Rating: 194°C
