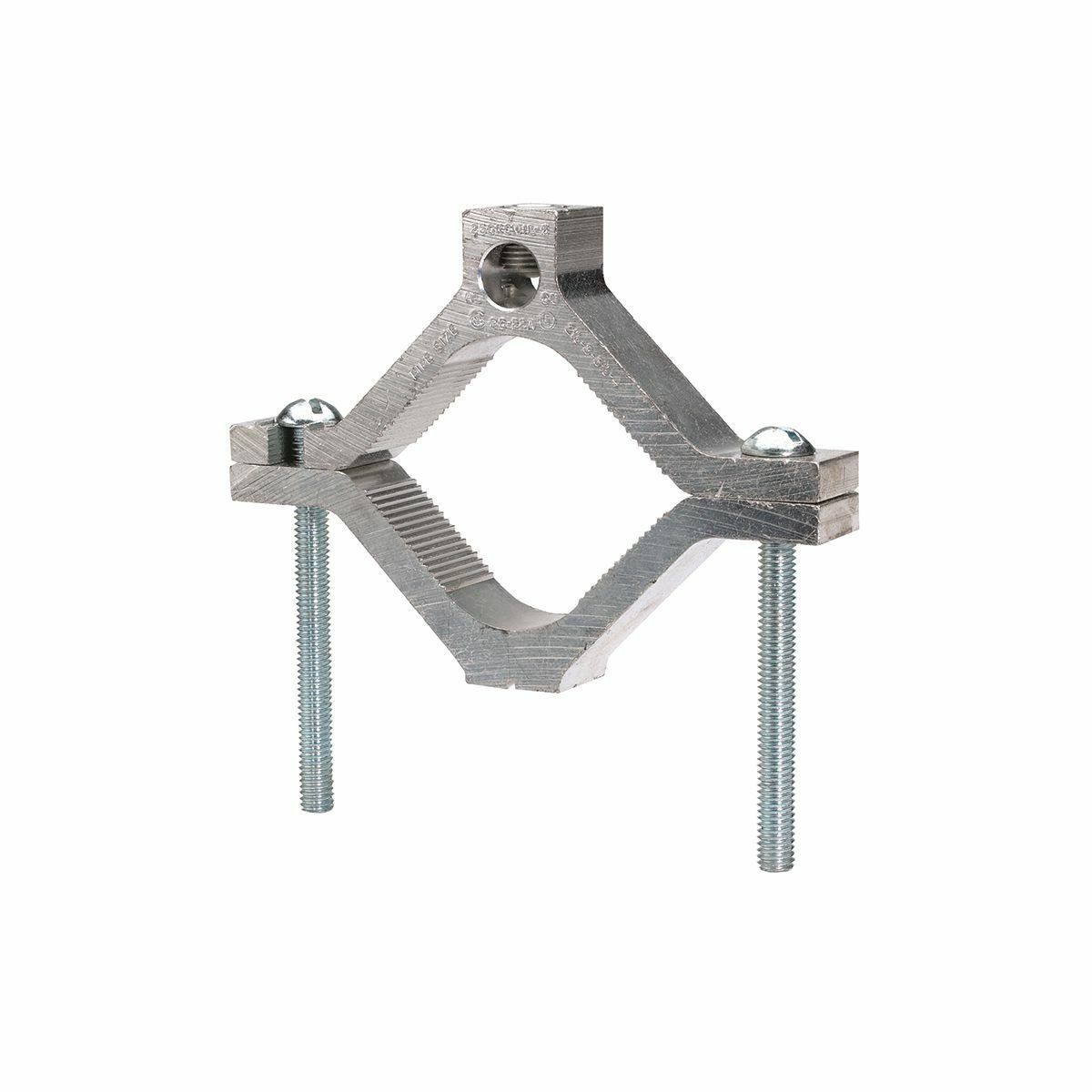

BURNDY GC18A Mechanical Grounding Connector Cable to Water Pipe

Product Description

The BURNDY GC18A is a mechanical grounding connector designed for connecting cables to water pipes. This connector supports conductor sizes from six AWG to two hundred fifty KCMIL and fits pipes ranging from one and a quarter to two inches.

• For use with copper or aluminum conductors.
• UL listed for safety and reliability in electrical installations.
• Constructed from extruded aluminum alloy for durability.

Product Highlights

This connector provides a secure grounding connection ideal for both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Burndy, a Hubbell affiliate
• Brand: BURNDY
• Catalog Number: GC18A

Technical Specifications

• Material: Aluminum
• Size Range: 6 AWG - 250 KCMIL
• Pipe Size: 1-1/4 inch to 2 inch
• Length: 3-3/4 inches
• Width: 13/16 inch
• Temperature Rating: 194°F
• Special Features: UL listed, low contact resistance, prevents galvanic corrosion
• Application: For use with copper or aluminum conductors to copper water pipes, galvanized pipes, or steel conduits
