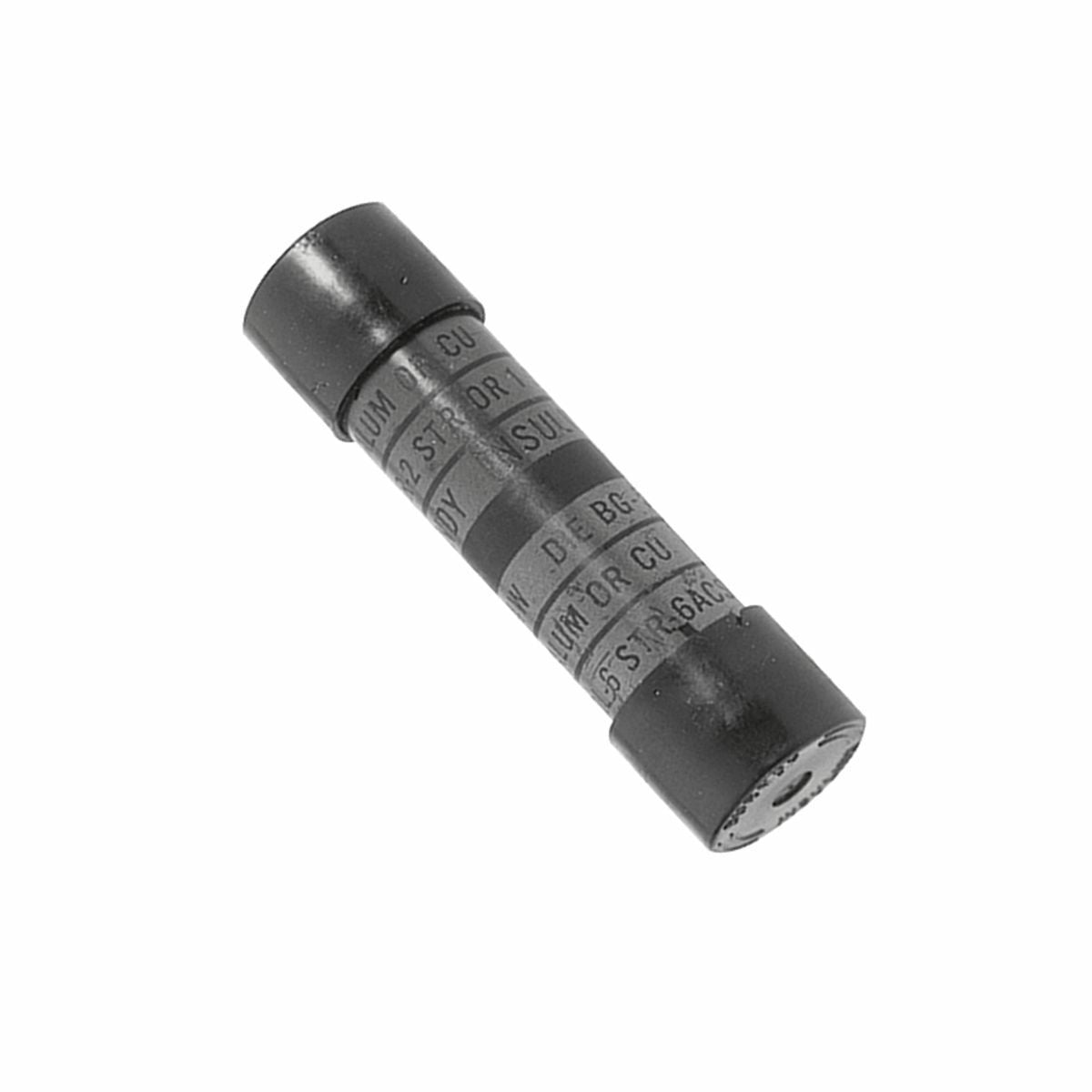

BURNDY ES4W4W Insulated AL Service Entrance Compression Sleeve for Combinations of Insulated CU, AL and ACSR Conductors

Product Description

The BURNDY ES4W4W is an insulated aluminum compression sleeve designed for service entrance applications. This connector supports various combinations of insulated copper, aluminum, and ACSR conductors. It features a blue color code on both sides for easy identification.

• Compatible with copper, aluminum, and ACSR conductors.
• Utilizes a polyethylene cap to prevent dirt accumulation.
• Engineered for easy two-hand installation and moisture protection.

Product Highlights

This compression sleeve provides a secure connection for overhead distribution lines and is made in the USA.

Product Information

Standard Information

• Brand: BURNDY
• Manufacturer: Burndy, a Hubbell affiliate

Technical Specifications

• Catalog Number: ES4W4W
• Application: For insulated combinations of copper, aluminum, and ACSR compressed conductors in overhead distribution
• Material: Aluminum
• Insulation: Yes
• Country of Origin: United States
• UPC: 781810142455
• Cross Reference Products: ICS64-1
• Length: Two and three-quarter inches
• Diameter: Three-quarters inch
