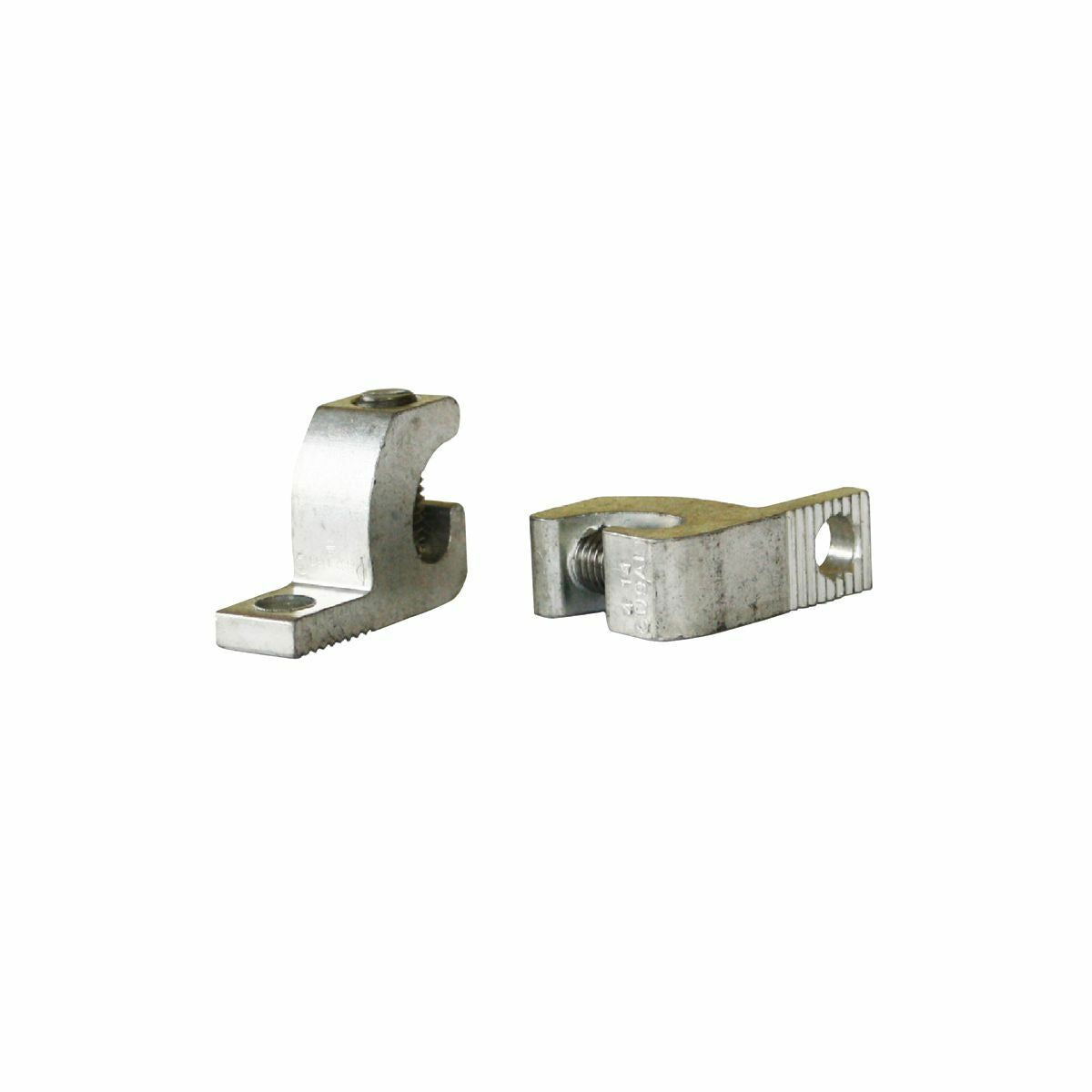

BURNDY BGBL1/0 Aluminum Lay-in Lug 1/0-14 AWG 3/8 Stud Tin Plated

Product Description

The BURNDY BGBL1/0 is an aluminum lay-in lug designed for reliable connections of aluminum and copper conductors. This lug accommodates conductors ranging from 1/0 to 14 AWG and features a 3/8-inch stud for secure fastening. The electro-tin plating helps reduce contact resistance for effective electrical connections.

• Suitable for copper and aluminum conductor combinations up to ninety degrees Celsius
• Manufactured from high-strength aluminum
• UL 486A-B listed for safety

Product Highlights

This aluminum lay-in lug simplifies installation with its lay-in feature and is ideal for grounding and bonding applications.

Product Information

Standard Information

• Catalog Number: BGBL1/0
• Brand: BURNDY

Technical Specifications

• Application: For copper and aluminum conductor combinations up to ninety degrees Celsius
• Material: Aluminum
• Manufacturer: Burndy, a Hubbell affiliate
• Temperature Rating: 194 degrees Fahrenheit
• Stud Size: 3/8 inch
• UL Listing: UL 486A-B
• Cross Reference Products: GBL-1/0, GLA-0, LL1014
