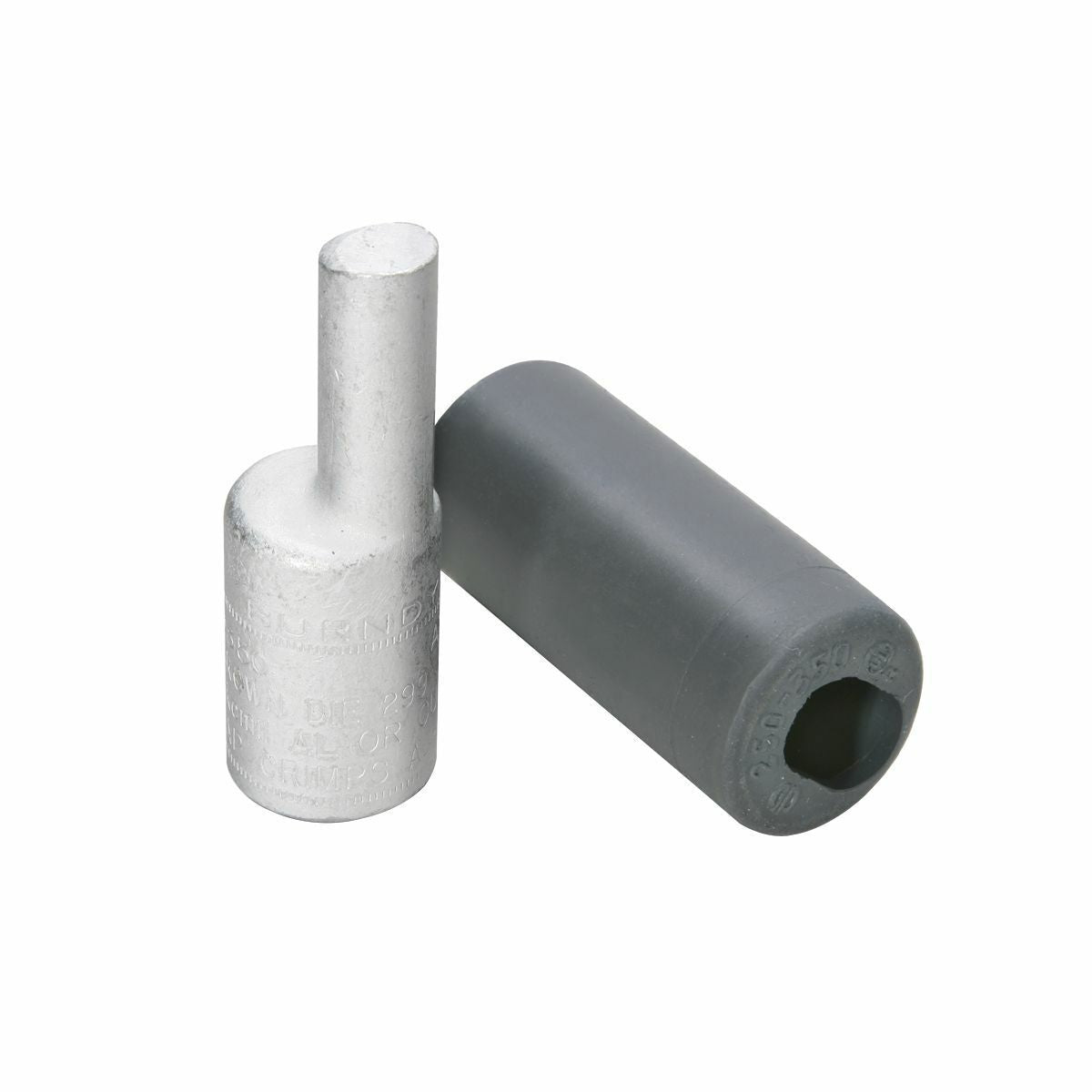

BURNDY AYPO400 Aluminum Compression Pin Adapter, 400 kcmil, 0.63 Plug Dia, 1.60 Plug Length, Al/Cu Rated

Product Description

BURNDY AYPO400 is an Aluminum Compression Pin Adapter designed for wire termination. It accommodates conductors sized up to four hundred kcmil and features a plug diameter of zero point sixty-three inches and a length of one point six inches. This product is suitable for applications that require reliable and robust connections.

• Compatible with aluminum and copper conductors.
• Meets UL 486A and UL 486B standards.
• Tin-plated for enhanced corrosion resistance.

Product Highlights

This product facilitates a secure connection in environments with limited space while ensuring high conductivity.

Product Information

Standard Information

• Brand: BURNDY
• Catalog Number: AYPO400

Technical Specifications

• Material: Aluminum
• Finish: Tin-Plated
• Application: Wire Termination
• Insulation Type: Rubber
• Voltage Rating: 35 kV
• Temperature Rating: 194 degrees Fahrenheit
• Country of Origin: United States
• Special Features: Designed to prevent bi-metallic corrosion and includes EPDM rubber covers.
