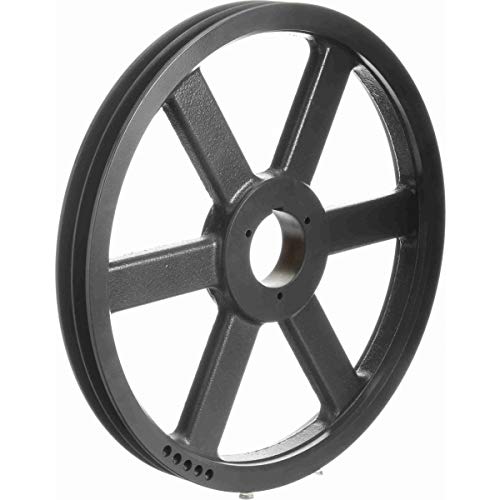

Browning 2B5V154 Fixed Pitch Sheave 2 Grooves 15.68 Inch Diameter

Product Description

The Browning 2B5V154 fixed pitch sheave features two grooves and is compatible with A, B, and 5V belts. This sheave is engineered to support a variety of industrial and mechanical functions with its 15.68 inch diameter and requires a B bushing for installation.

• Supports multiple belt types including A, B, and 5V belts.
• Constructed from durable cast iron with a black oxide finish for corrosion resistance.
• Designed for easy installation and removal with a split taper sheave mechanism.

Product Highlights

Browning's 2B5V154 sheave is critical for efficient mechanical transmissions in industrial applications, offering flexibility in belt selection and reliable performance under demanding conditions.

Product Information

Technical Specifications

• Material: Cast Iron
• Diameter: 15.68 inches
• Bushing Requirement: B Bushing
• Maximum Bore Diameter: 1.187 inches
• Minimum Bore Diameter: 0.687 inches
• Maximum Operating Speed: 3000 RPM
• Weight: 26 pounds
