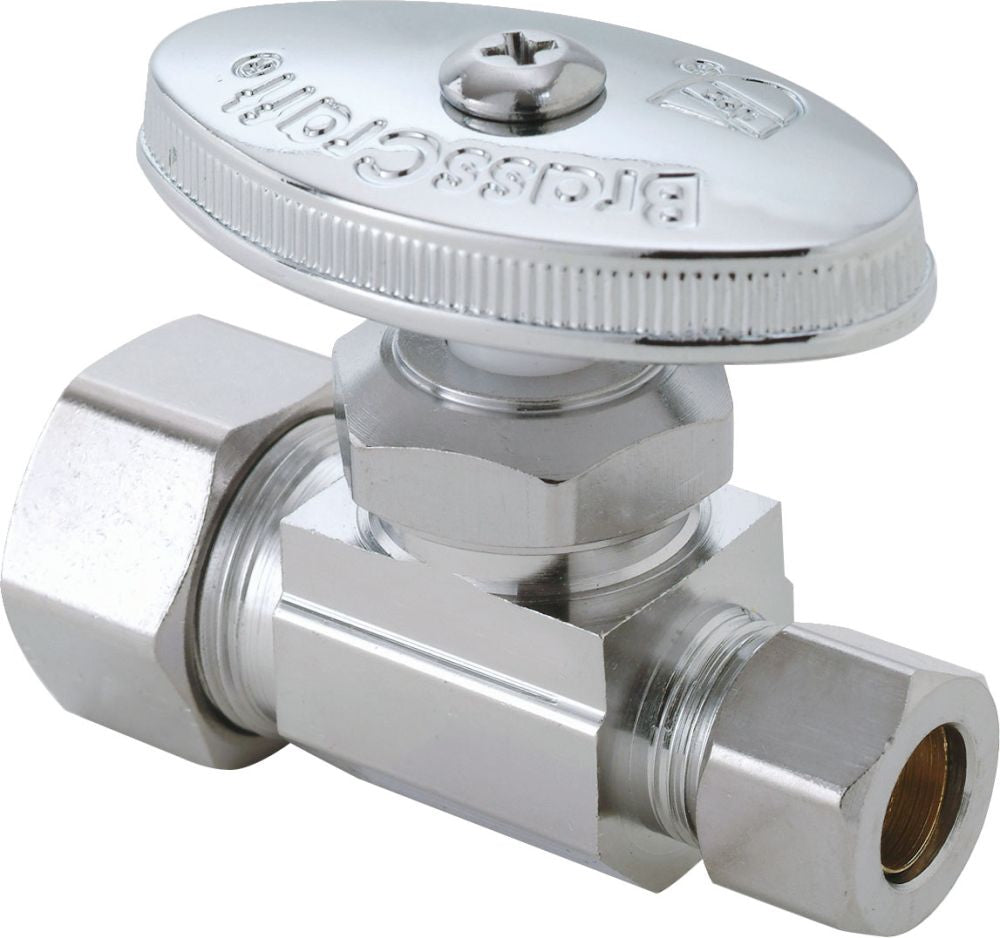

BrassCraft OCR14XC Multi-Turn Straight Stop, 1/2 x 3/8 Inch Compression

Product Description

The BrassCraft OCR14XC is a multi-turn straight stop valve designed for controlling water flow in plumbing fixtures. With a nominal size of one-half inch by three-eighths inch, this valve features a compression inlet and outlet, making it suitable for various applications in residential and commercial plumbing.

• Made with lead-free brass for safe potable water use
• Temperature rating from forty to one hundred forty degrees Fahrenheit
• Pressure rating up to one hundred twenty-five PSI

Product Highlights

This stop valve provides smooth operation with minimal effort, enhancing maintenance and repair tasks without turning off the entire water supply.

Product Information

Standard Information

• Brand: BrassCraft
• MPN: OCR14XC

Technical Specifications

• Nominal Size: 1/2 inch x 3/8 inch
• End Connection: Compression x Compression
• Body Material: Chrome Plated Brass
• Handle Material: Plated Die-Cast Zinc
• Operation Type: Multi-Turn
• Temperature Rating: 40 to 140 degrees F
• Pressure Rating: 125 PSI
• Standards: ASME A112.18.1/CSA B125.1, NSF/ANSI 372, NSF 61
