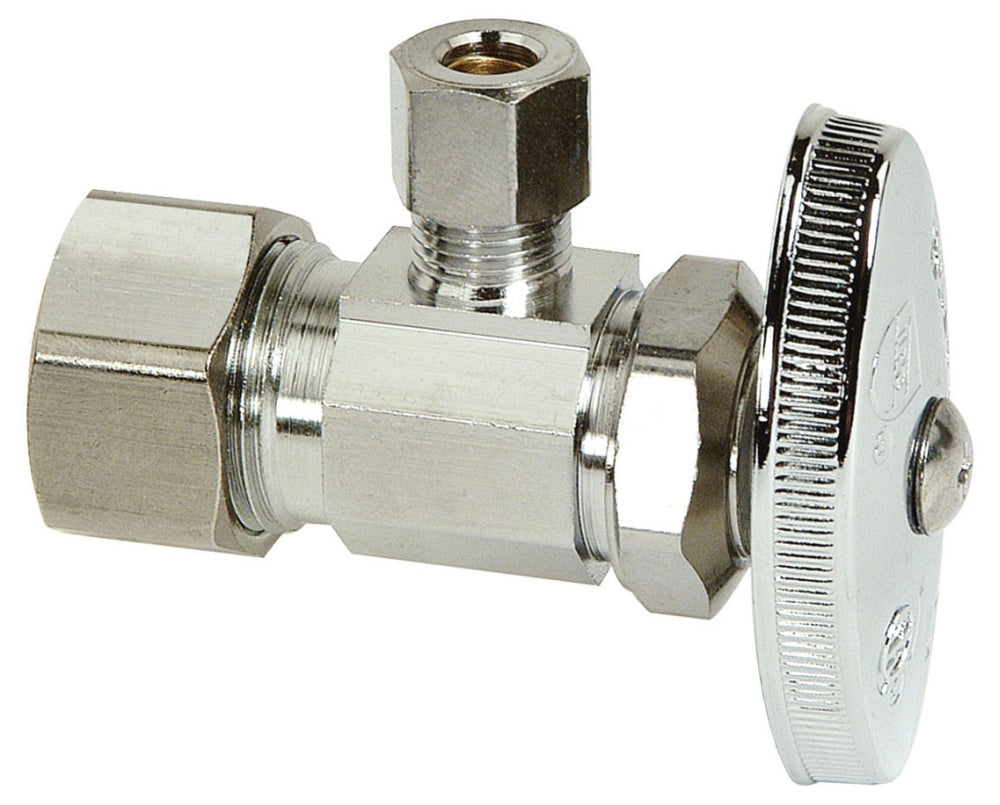

BrassCraft OCR09X C Angle Stop 1/2 x 1/4 in 125 psi

Product Description

The BrassCraft OCR09X C is a reliable angle stop valve designed for effective water flow control. This multi-turn valve provides a nominal size of one-half inch by one-quarter inch with compression connections, suitable for residential and commercial plumbing applications.

• Lead-free brass construction for safety.
• Multi-turn actuation for precise flow control.
• Compatible with copper and PEX piping systems.

Product Highlights

This valve is useful in various water supply situations, ensuring effective management of water flow.

Product Information

Standard Information

• Manufacturer: BrassCraft
• MPN: OCR09X C

Technical Specifications

• Body Material: Chrome Plated Brass
• Handle Material: Die-Cast Zinc Plated/ABS Plastic/Polycarbonate
• Temperature Rating: 40 to 140 Deg F
• Pressure Rating: 125 PSI
• End Connection: Compression x Compression
• Inclusions/Features: Brass Compression Sleeve, Rubber Bib, Packing Washer
• Applicable Standard: ASME A112.18.1/CSA B125.1
• Nominal Size: 1/2 Inch x 1/4 Inch
