Product Description

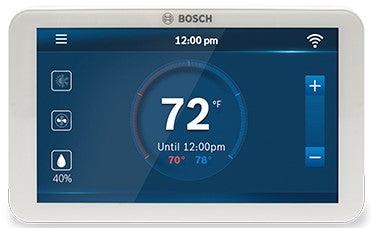

The Bosch 8-733-948-009 Connected Control BCC100 Heat Pump Thermostat is a reliable solution for managing home heating and cooling systems. This thermostat features a five-inch touch screen with a resolution of 854 by 480 pixels, providing clear visibility and ease of operation. It includes seven relay outputs for the terminals G, Y1, Y2, W1, W2, O/B, and H/dH.
- Five-inch touch screen for easy visibility
- Wireless connectivity via Wi-Fi 802.11a/b/g/n
- Designed to work with Bosch water source heat pumps
Product Highlights
This thermostat’s interface displays fault messages from Bosch water source heat pumps. It conducts pulse signal monitoring and offers advanced features like multiple brightness settings and configurable screen timeout options.
Product Information
Standard Information
-
Brand: Bosch Thermotechnology
-
Part Number: L8369
Technical Specifications
-
AC Power: 24-32 VAC
-
Amperage: 7 A
-
DC Power: 5 VDC (USB)
-
Dimensions: 5.20 x 3.07 x 0.98 in
-
Temperature Range: 45 to 99 deg F
-
Humidity Control Display Range: 0 to 100 % RH
-
Humidity Control Setpoint Range: 30 to 90 % RH
-
Anti-Short Cycle: 1 to 5 min
-
Screen Timeout Settings: 20/60/180 sec
-
Brightness Settings: Low, Medium, High
