Blackburn GUV2025 U BLT GRD CMP

Product Description

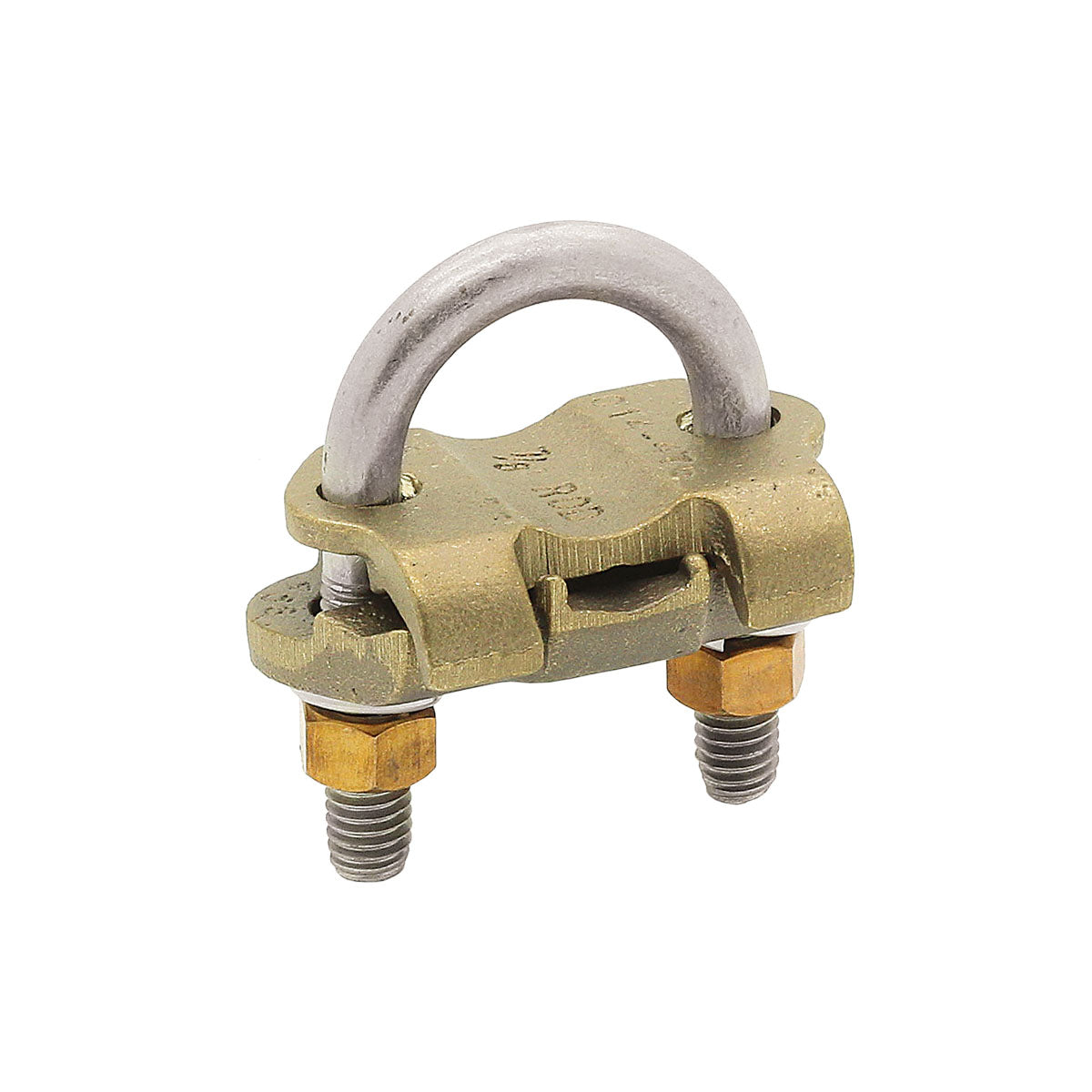

The Blackburn GUV2025 is a U-bolt copper ground clamp designed for reliable electrical grounding connections. This clamp accommodates a wire range of two-aught to two hundred fifty kcmil and is suitable for rod sizes ranging from two to two and three-eighths inches. It effectively connects copper or copper-clad steel grounding conductors to ground.

• Wire range of 2/0 to 250 kcmil
• Rod size compatibility from 2 to 2-3/8 inches
• Max IPS pipe size of 2 inches

Product Highlights

Ideal for mechanical grounding applications, the GUV2025 provides a robust and secure connection in various installations.

Product Information

Standard Information

• Brand: Blackburn
• Manufacturer: Blackburn

Technical Specifications

• Length: 4-7/16 inches
• Width: 3-11/16 inches
• Depth: 1-9/16 inches
• Insulation: None
• Conductor Size: 2/0 AWG - 250 kcmil
• Special Features: Excellent for connecting copper or copper-clad steel grounding conductor to ground
• Standard Compliance: UL E3060; CSA 12798
