Belimo CMB24-SR-L Direct Coupled Actuator 18 in-lb

Product Description

The Belimo CMB24-SR-L is a direct coupled actuator with a torque rating of eighteen inch-pounds. It operates at 24 VAC and is designed for modulation control. It supports control signals of two to ten VDC or four to twenty mA. This actuator is suitable for air control dampers in HVAC systems.

• Torque: 18 in-lb, 2 Nm
• Voltage: AC/DC 24 V
• Weight: 0.61 lbs

Product Highlights

This actuator provides reliable performance in a range of HVAC applications. It features a compact design for easy installation and direct mounting on the damper spindle.

Product Information

Standard Information

• Manufacturer: Belimo
• MPN: CMB24-SR-L

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 0 to 287.5 degrees
• Control Type: DC 2 to 10 V
• Degree of Protection: IP54, NEMA 2

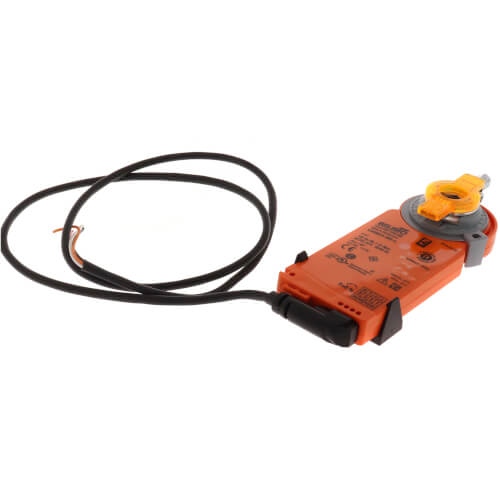

• Electrical Connection: 3 ft. 18 gauge appliance-rated cable
• Power Consumption (Running): 1.5 W
• Power Consumption (Holding): 0.5 W
• Running Time (Motor): 35 seconds @ 90 degrees
• Temperature Range: -22°F to 122°F
