Belimo B313B Characterized Control Valve Brass 0.5 Inch 3-Way 4.7 Cv

Product Description

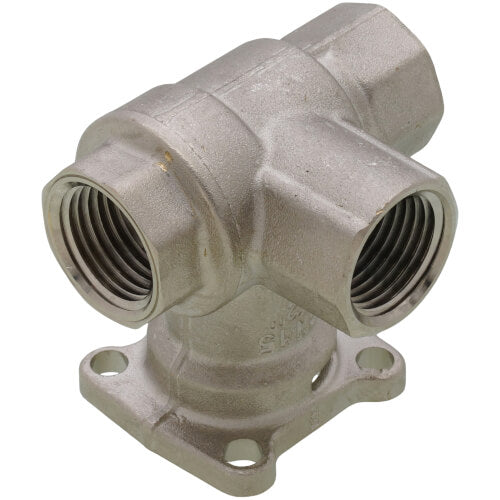

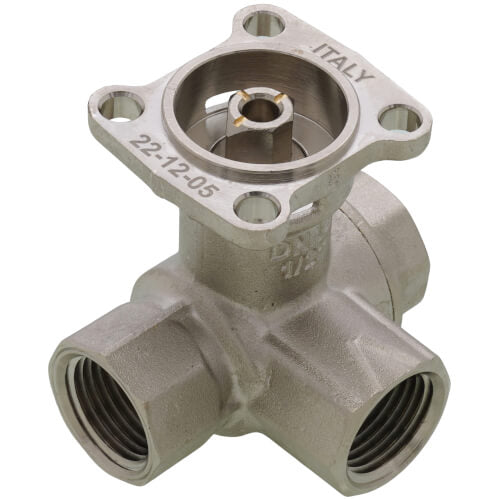

The Belimo B313B is a 3-way characterized control valve designed for precise flow control in HVAC systems. This valve features a brass body with chrome plated trim, ensuring durability and resistance to corrosion.

• Equipped with an equal percentage characteristic for stable control
• Chrome plated brass trim for enhanced durability and longevity
• Suitable for both variable and constant flow systems

Product Highlights

The Belimo B313B valve is optimized for use in applications such as air handling units, fan coil heating or cooling coils, and VAV box re-heat coils. Its specialized design offers slow and controlled flow increase, improving part-load behavior and reducing energy consumption.

Product Information

Technical Specifications

• Valve Type: Characterized Control Valve (CCV)
• Size: 0.5 inches
• Pattern: 3-way
• Cv Rating: 4.7
• Flow: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure: Not pressure independent
