Product Description

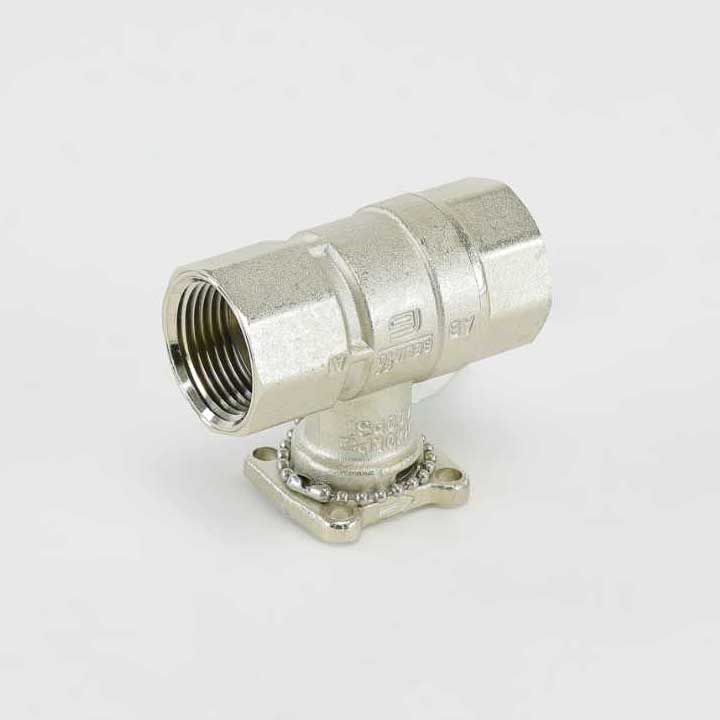

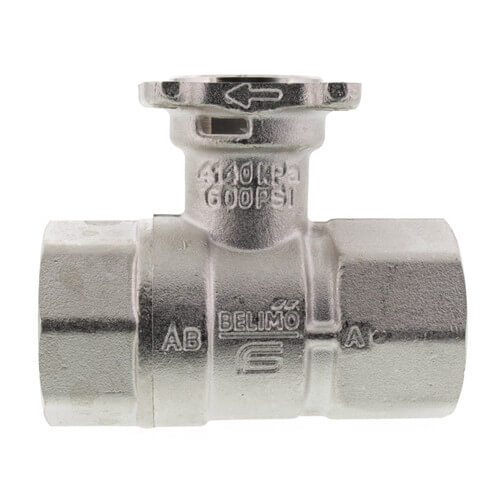

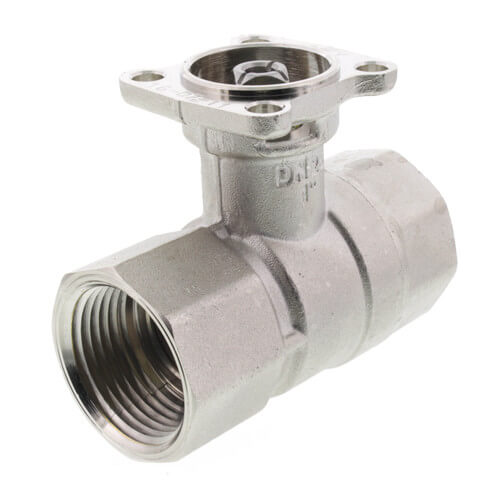

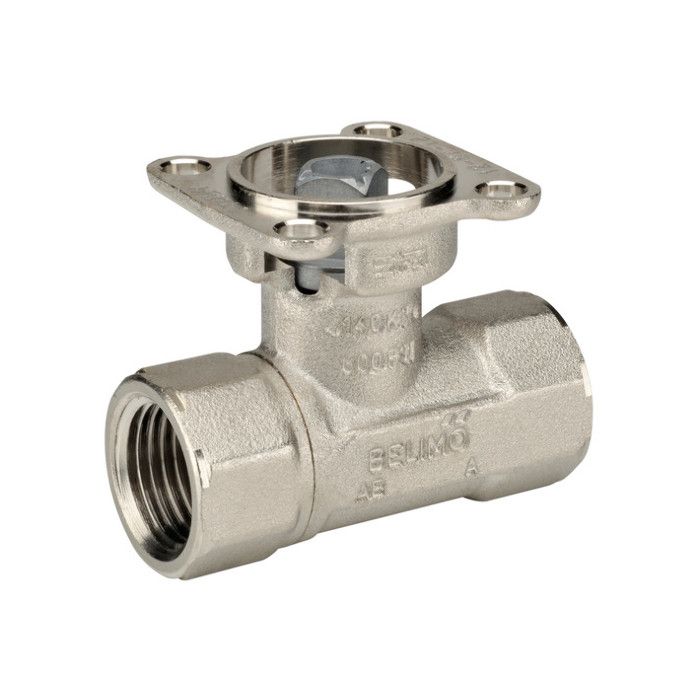

The Belimo B224 Characterized Control Valve is engineered for precision flow control in HVAC systems, featuring a 1 inch 2-way configuration. This valve is specifically designed with a stainless steel trim, ensuring durability and reliable operation in variable flow hydronic systems.
- Optimal for heating and cooling applications within air handling and fan coil units.
- Equipped with an equal percentage flow characteristic for stable regulation.
- Constructed with a nickel plated forged brass body suitable for up to 60% glycol solutions.
Product Highlights
Standardized for hydronic systems, the Belimo B224 provides a controllable flow with a Cv rating of 19, facilitating efficient system performance. Its internal thread end fittings make installation straightforward in diverse setups.
Product Information
Standard Information
Technical Specifications
-
Flow Capacity: 19 Cv
-
Body Material: Nickel plated forged brass
-
Valve Size: 1 inch
-
Connection Type: NPT internal thread
-
Pressure Rating: 600 psi body pressure
-
Maximum Temperature: 212 degrees Fahrenheit
-
Trim: Stainless steel
-
Pattern: 2-way
