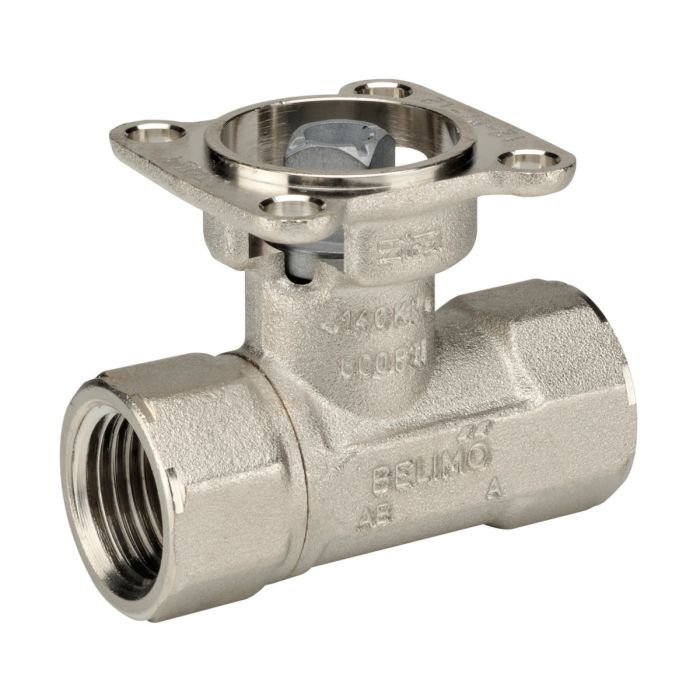

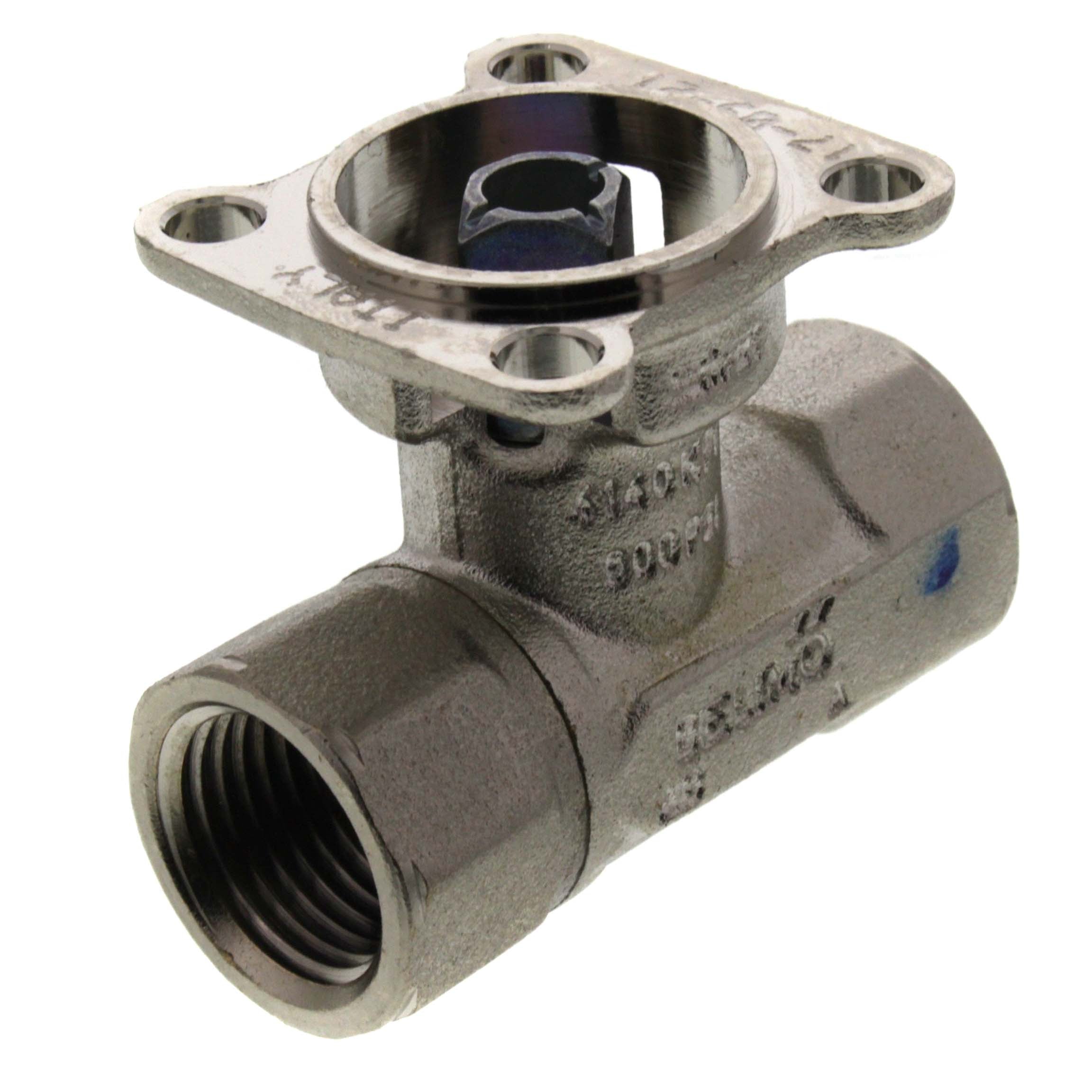

Belimo B210 Characterized Control Valve 1/2 NPT 2-way

Product Description

The Belimo B210 is a characterized control valve designed for efficient fluid control in HVAC systems. With a size of one half inch NPT and a flow capacity of 1.2 Cv, this two-way valve is essential for regulating chilled or hot water in various applications.

• Suitable for use in air handling units and fan coil heating or cooling systems.
• Constructed from forged brass and stainless steel for durability.
• Features self-cleaning mechanics and zero leakage design.

Product Highlights

This valve offers reliable operation and maintenance-free performance for extended periods.

Product Information

Standard Information

• Brand: Belimo
• MPN: B210

Technical Specifications

• Flow Capacity (Cv): 1.2
• Close-Off Pressure: 200 psi
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Fluid Type: Chilled or hot water up to 60% glycol
• End Fitting Type: Internal thread
• Valve Size: 0.5 inches
• Body Pressure Rating: 600 psi
• Trim Material: Stainless steel
