Product Description

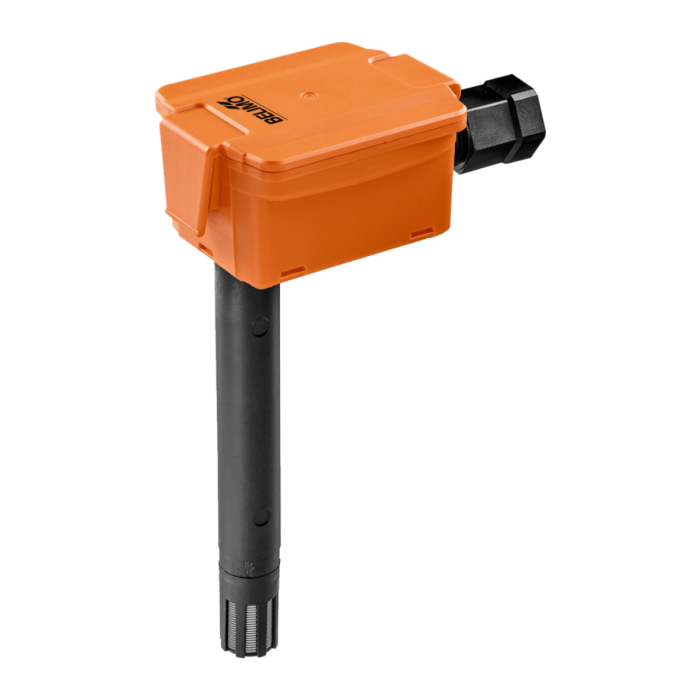

The Belimo 22DTH-53MM is a duct humidity and temperature sensor. This sensor measures humidity and temperature in duct systems accurately. It is widely used in HVAC systems for monitoring indoor air quality.
- 10K NTC Type III passive temperature output signal
- 4 to 20 mA active humidity output signal
- NEMA 4X rated enclosure
Product Highlights
This sensor is designed for measuring relative and absolute humidity in air ducts.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: 22DTH-53MM
Technical Specifications
-
Application: Duct
-
Degree of Protection: IP65 NEMA 4X
-
Electrical Connection: Terminals
-
Measured Values: Humidity, Temperature
-
Measuring Range Humidity: 0 to 100% RH non-condensing
-
Measuring Range Temperature: -30 to 160 °F [-35 to 70 °C]
-
Mounting Type: Single Point
-
Output Signal: 4 to 20 mA
-
Probe Length: 5.5 inches [140 mm]
-
Voltage AC/DC: DC 24 V
