Product Description

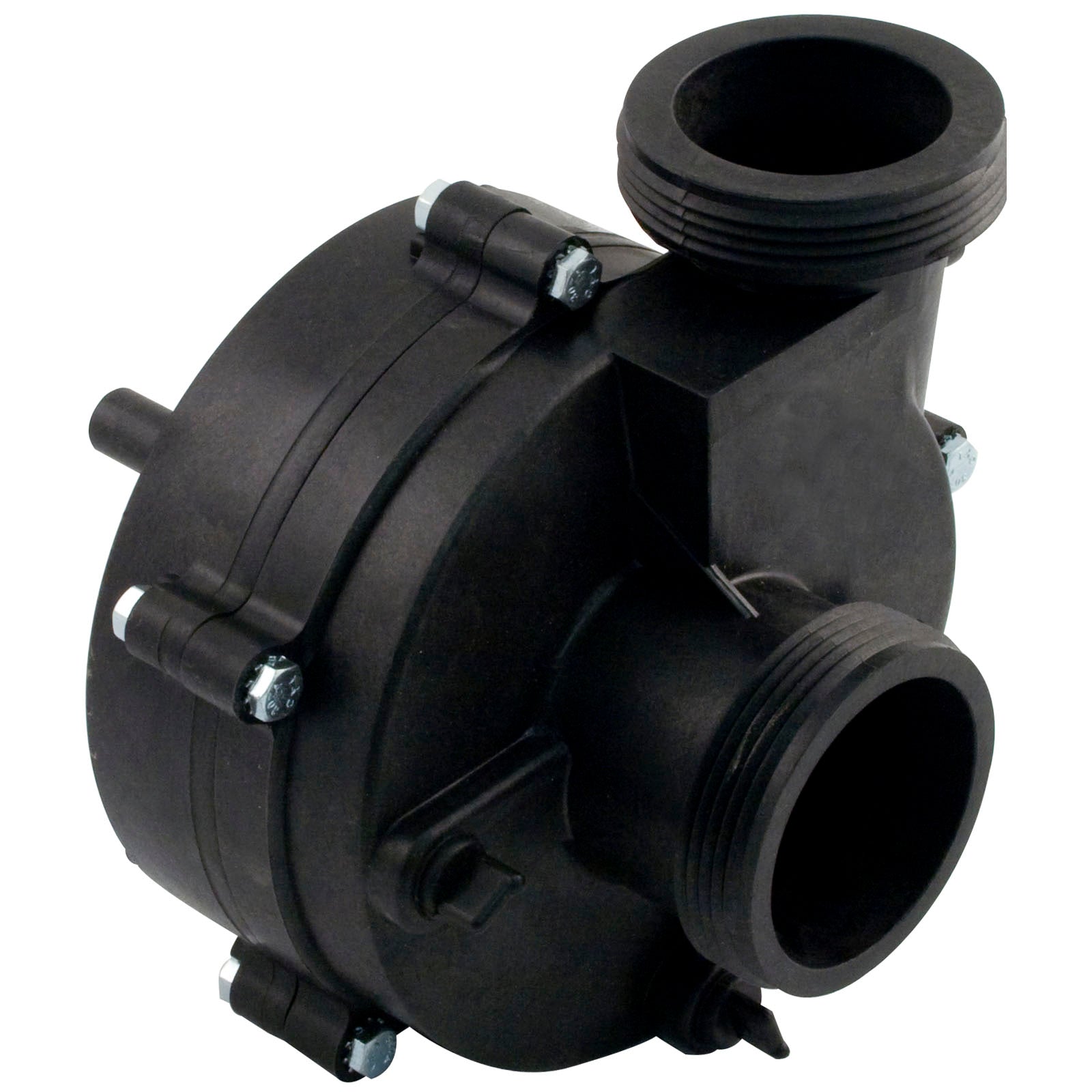

The Balboa Water Group 1215007 is a wet end designed for use in spa pump applications. It is compatible with 48/56Y frame thru-bolt motors. This model includes a two-inch male buttress thread for both the side discharge and center suction. The unit features a secure five-bolt assembly for fastening the volute. It is specifically engineered for four horsepower motors and is part of the Ultimax pump series.
- Features two intakes and two discharges.
- Constructed with a five-bolt assembly for secure attachment.
- Delivers flow rates exceeding 325 gallons per minute.
Product Highlights
This wet end is built for reliable performance in spa systems, ensuring efficient water circulation with high flow rates.
Product Information
Standard Information
-
Pump Model: Ultimax
-
Motor Frame: 48/56Y Frame Thru-Bolt
Technical Specifications
-
Drain Plug Location: Six to nine o'clock
-
Suction Style: Center
-
Suction Pipe: Two-inch Male Buttress Thread (mbt)
-
Discharge Style: Side
-
Discharge Pipe: Two-inch Male Buttress Thread (mbt)
-
Horsepower: four HP
-
Volute Fastening Type: five bolts and five nuts
-
Manufacturer: Vico (Balboa Water Group)
-
Vico Item Number: 1215007
-
Condition: New
-
Outside Diameter: three inches
-
Mounting Threads: two different types
