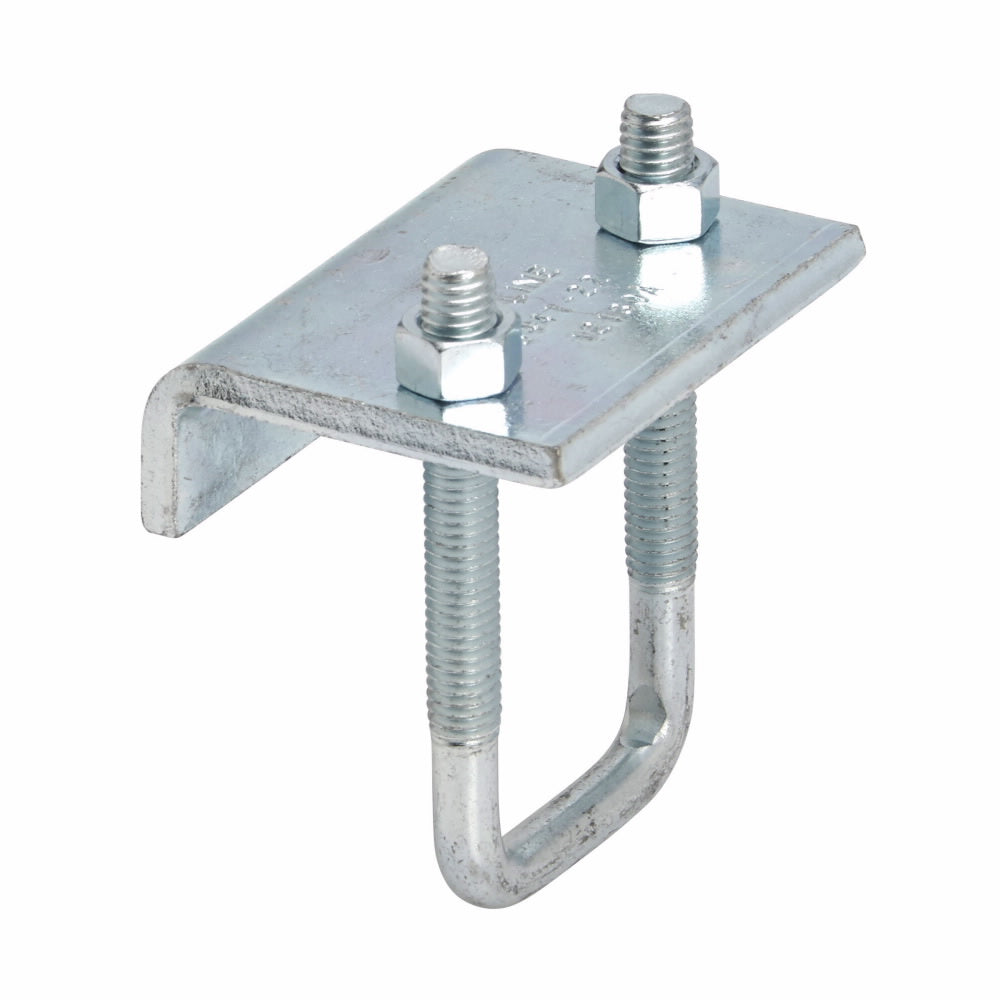

B-Line B441-22ZN Beam Clamp for 13/16 to 1-5/8 Inch High Channel

Product Description

B-Line B441-22ZN is a beam clamp designed for use with channels ranging from thirteen-sixteenths inches to one and five-eighths inches. This product features a load capacity of twelve hundred pounds. It is made of low carbon steel and has a zinc plated finish to provide durability and resistance to corrosion.

• Load Capacity: 1200 pounds
• Flange Thickness: 3/4 inch
• Torque Specifications: 150 inch-pounds

Product Highlights

This beam clamp is suitable for high channels and allows for a secure and stable installation.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: B-Line

Technical Specifications

• Catalog Number: B441-22ZN
• Finish: Zinc Plated
• Dimensions: 3-3/8 inches height, 3 inches width, 2-3/8 inches depth
• Channel Size: 13/16 to 1-5/8 inch
• Flange Thickness: 3/4 inch
• Load Capacity: 1200 pounds
• Channel Position: Right Angle Under Flange
• Material: Low Carbon Steel
