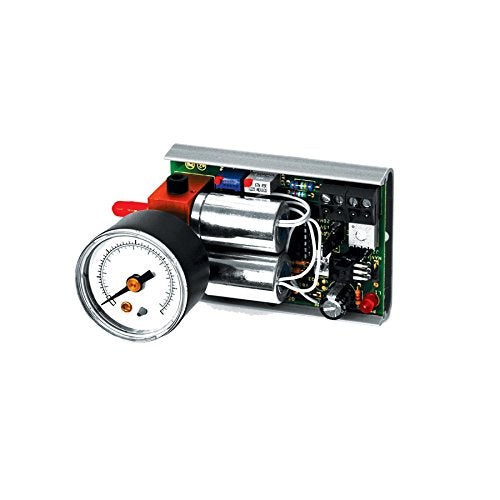

Automation Components Inc PXP2.3GFS Analog Input to Pressure Output Interface Module

Product Description

The Automation Components Inc PXP2.3GFS is an advanced analog input to pressure output interface module. This device efficiently converts an analog electrical input signal to a proportional pneumatic output, allowing for precise control over pneumatic systems.

• Includes fail-safe N.O. branch exhaust valve to ensure safety on power failures.
• Features manual override for easy setup and troubleshooting.
• Supports four selectable input ranges for versatile application.

Product Highlights

Designed for robust industrial applications, the PXP2.3GFS module regulates branch line pressure accurately based on the input signal. The unit is equipped with two valves and provides a modulating output of 0 to 15 psig. A feedback signal of 0-5 VDC reflects the branch line pressure, aiding in real-time diagnostics and system management.

Product Information

Technical Specifications

• Input Ranges: 0 to 1, 0 to 15 VDC, 0 to 20 mA
• Output: 0 to 15 psig modulating output
• Feedback Signal: 0-5 VDC linear with branch pressure
• Safety Features: N.O. branch exhaust valve, manual override
• Calibration: All factory calibrated, NIST traceable
