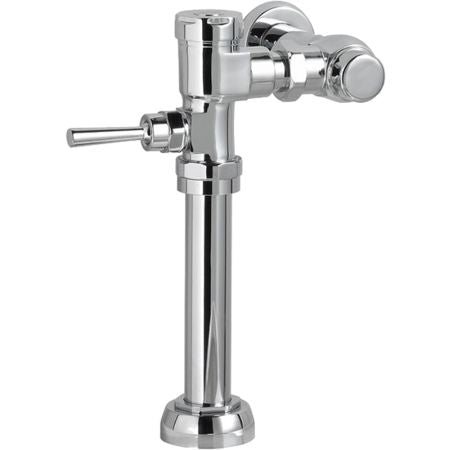

AS Flush Valves 6047.161.002 Manual Exposed Toilet Flush Valve Piston-Type 1-1/2 Top Spud

Product Description

The AS Flush Valves 6047.161.002 is a manual exposed toilet flush valve suitable for both floor mount and wall hung toilets. This piston-type valve features a one and one-half inch top spud and utilizes a flow rate of 1.6 gallons per flush. Ideal for high-use commercial settings, it offers reliable performance and reduces maintenance needs.

• Self-cleaning brass piston with integral wiper spring
• Positive seal ensures leak-free performance
• ADA compliant with adjustable installation options

Product Highlights

This valve is designed with a durable chrome-plated cast brass construction that withstands harsh conditions. It boasts chloramine-resistant seals and can be installed in either left or right-handed configurations.

Product Information

Standard Information

• Manufacturer: AS Flush Valves
• Part Number: 558707

Technical Specifications

• Class: 55
• Operating Pressure Overall Range: 20-125 psi
• Flow Requirement: 25gpm (94.6 L/min.)
• Finish: Polished Chrome
• Operating Pressure Recommended: 25 psi (flowing)-80 psi (static)
