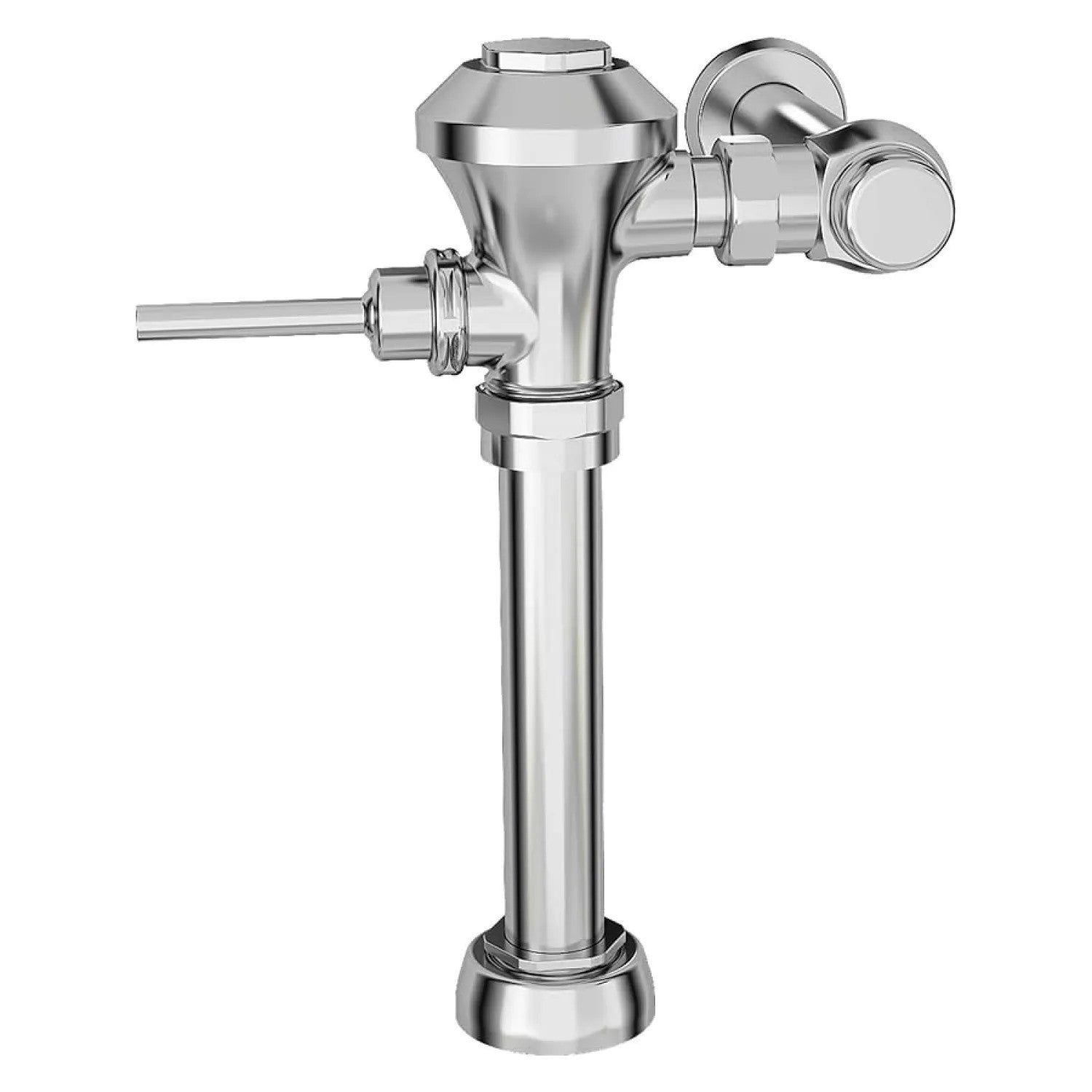

AS 6147161.002 Ultima Manual Toilet Flush Valve 1.6 GPF

Product Description

The AS Ultima 6147161.002 is a manual toilet flush valve suitable for commercial and clinical use. Made from dezincification-resistant brass alloy, this valve features a chrome finish and includes a non-hold open handle for automatic shut-off. The DynaClean self-cleaning wiper spring minimizes clogs, while the chlorine-resistant EvoLast diaphragm ensures long-lasting durability. This product is ADA compliant and can be installed in either left or right-handed configurations. The flush valve is designed for a top spud connection with a flow rate of one point six gallons per flush.

• DynaClean self-cleaning wiper spring
• Chlorine-resistant EvoLast diaphragm
• High back pressure vacuum breaker included

Product Highlights

The AS Ultima 6147161.002 offers advanced features for effective toilet flushing while reducing maintenance needs.

Product Information

Standard Information

• Brand: AS
• MPN: 6147161.002
• Product Collection: Ultima
• Flush Valve Type: Exposed
• Mounting Type: Top Spud

Technical Specifications

• Flow Rate: 1.6 GPF
• Material: Brass
• Finish: Chrome
• Connection Size: 1-1/2 inches
• Rough In: 11.5 inches
• Pressure Rating: 25 PSI
• Operating Temperature: 40 - 140 degrees F
• ADA Compliant: Yes
• Height: 14.625 inches
• Width: 4.75 inches
• Depth: 1.5 inches
