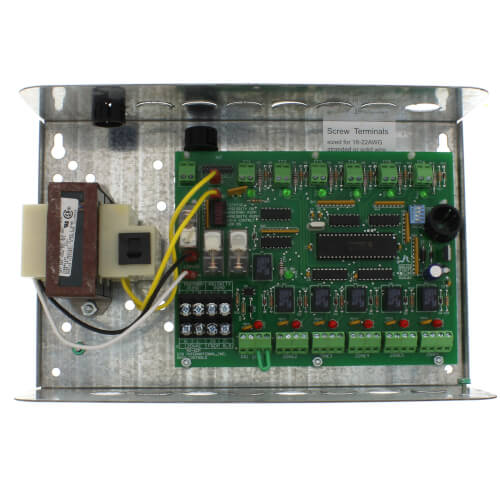

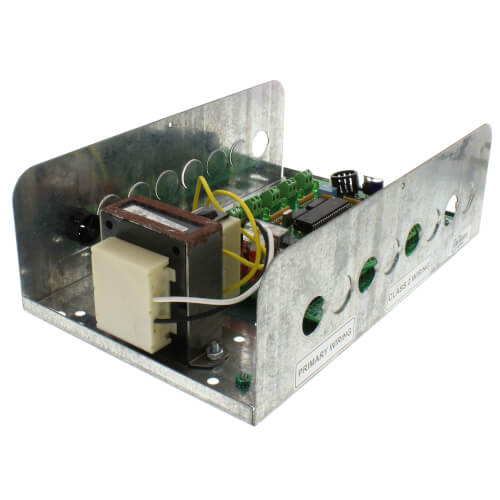

Argo AZ-6CP 6 Zone Valve Controller 120V with Circulator or Zone Valve Priority

Product Description

The Argo AZ-6CP is a six-zone valve controller designed for heating applications. It accommodates circulators or zone valves with a priority feature. This unit includes a transformer for powering thermostats and relays to manage both valves and pumps.

• Controls six zones
• 120V power
• Field-configurable for circulator or zone valve

Product Highlights

This controller features LED diagnostic lights for easy monitoring. It's compatible with all types of thermostats and includes an auto-reset fuse to prevent service interruptions. Expandable to ten zones with an additional unit, it's ideal for indirect hot water applications.

Product Information

Standard Information

• Brand: Argo
• MPN: AZ-6CP
• Category: Zone Valve Controls

Technical Specifications

• Zones: 6
• Voltage: 120V
• Amperage: 7.2 (Max)
• Warranty: 5 Year
• Weight: 7.33 lbs
• Application: Zoning
• Switch Action: SPST
• Country of Origin: United States
