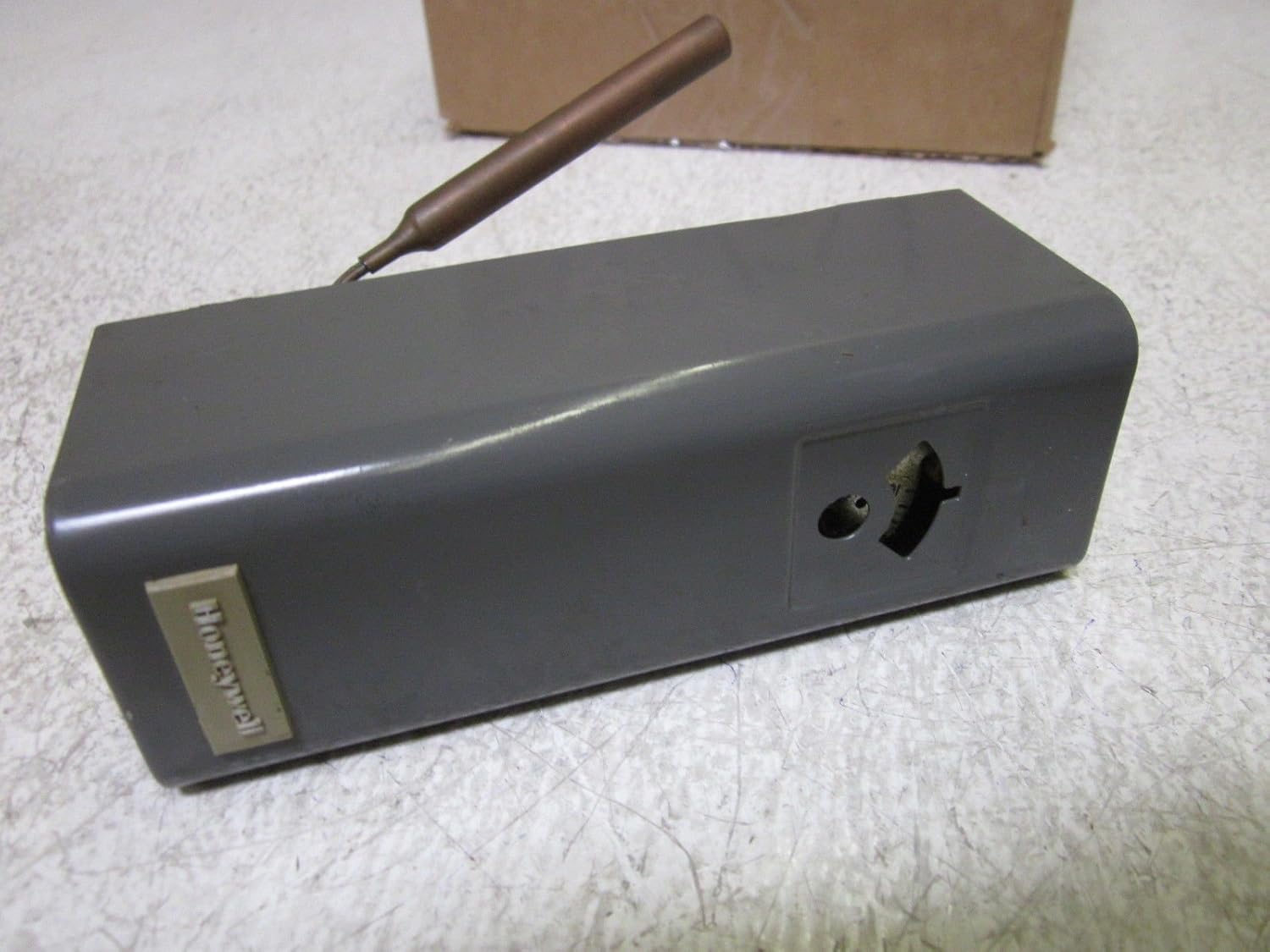

Honeywell L4006A1009 Aquastat Controller 120V 100-240F

Product Description

The Honeywell L4006A1009 Aquastat Controller is designed for limiting or regulating the temperature of liquids in hydronic heating systems, boilers, and storage tanks. It features a 120V power supply and an adjustable operating range of 100 to 240 degrees Fahrenheit.

• 120V power supply
• Adjustable operating range of 100 to 240 degrees Fahrenheit
• Used in hydronic heating systems, boilers, and storage tanks

Product Highlights

This Aquastat Controller, with model number L4006A1009, is suitable for controlling temperatures in various applications. It operates by breaking the circuit when the temperature rises to the setpoint. It can be installed horizontally or vertically, with direct or well immersion of the sensing element. The controller also comes with a heat-conductive compound for optimal performance.

Product Information

Standard Information

• Brand: Honeywell
• Model: L4006A
• MPN: L4006A1009
• National Stock Number: 6685-00-848-9947, 6685-00-871-4210

Technical Specifications

• Power Supply: 120V
• Operating Range: 100 to 240 degrees Fahrenheit
• Differential: 5 degrees Fahrenheit
• Mounting: Horizontal or vertical
• Immersion: Direct or well
• Certification: CSA, UL
• Weight: 2.00 pounds
• Dimensions: 23 inches x 16 inches x 18 inches
