Anvil 310002001 90-Degree Elbow 2-1/2 in FNPT Class 150

Product Description

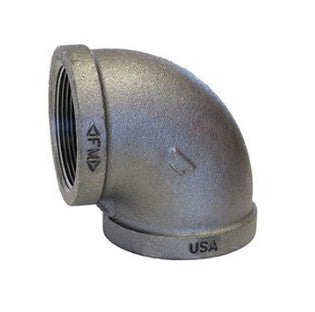

The Anvil 310002001 is a two and a half inch female black malleable iron 90-degree elbow designed for various applications including air, natural gas, non-potable water, oil, and steam. It follows ASME B16.3 standards and is suitable for Class 150 fittings. This fitting is built to provide durability and reliability in critical systems.

• Female National Pipe Thread (FNPT) connections on both ends.
• Constructed from sturdy malleable iron for long-lasting performance.
• Gas tested at a minimum of one hundred PSI.

Product Highlights

This elbow is perfect for connecting pipes at a 90-degree angle in plumbing and HVAC systems while adhering to required standards.

Product Information

Standard Information

• Brand: Anvil
• Category: Elbows

Technical Specifications

• Material: Malleable Iron
• Connection Type: FNPT x FNPT
• Saturated Steam Pressure: 150 PSI @ 350 Degrees F
• Maximum Operating Pressure: 300 PSI @ 150 Degrees F
• Standards: ASME B16.3, UL Listed, FM Approved
• Temperature Range: -20 Degrees to 350 Degrees F
• Finish: Black
• For Use with Pipe Schedule: 40
