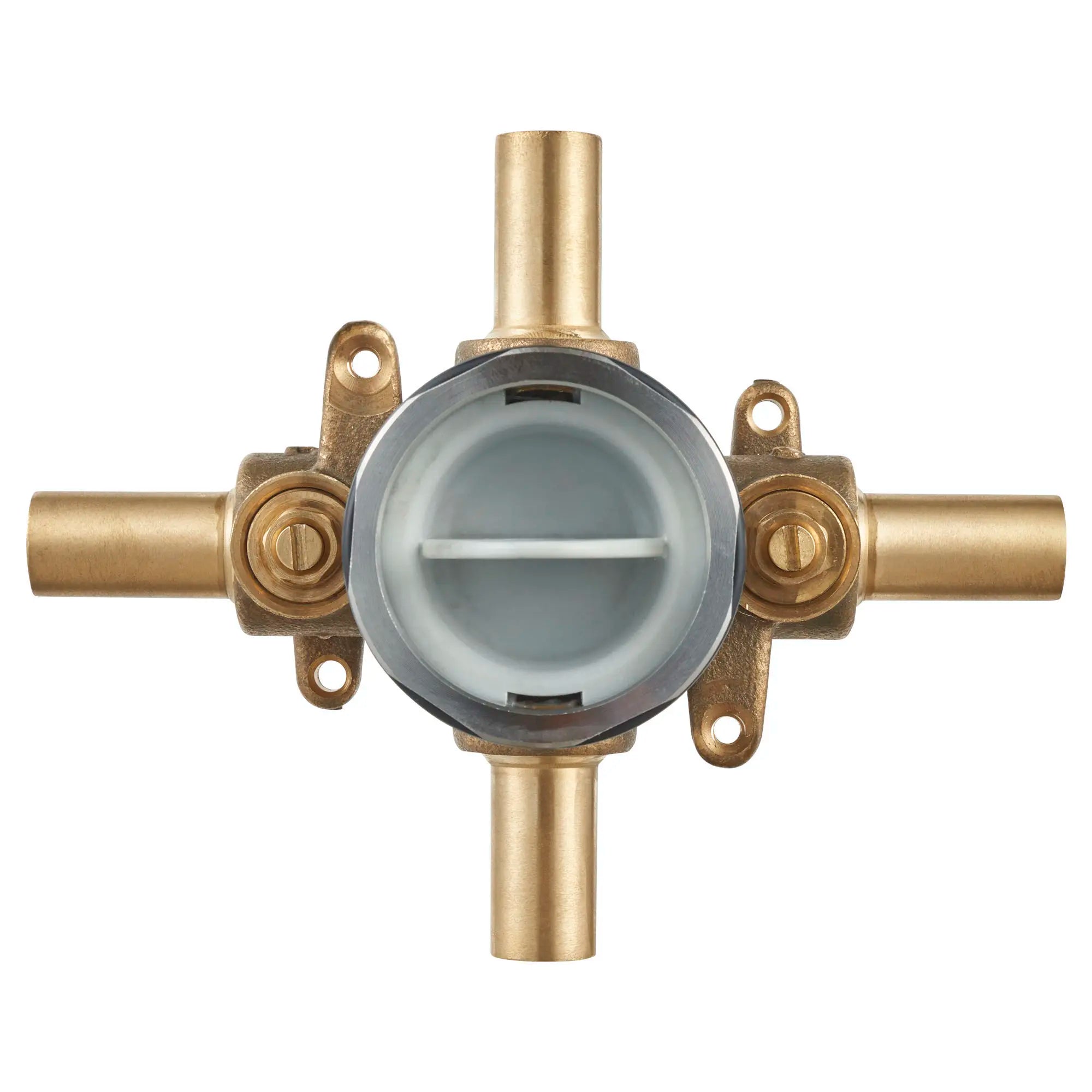

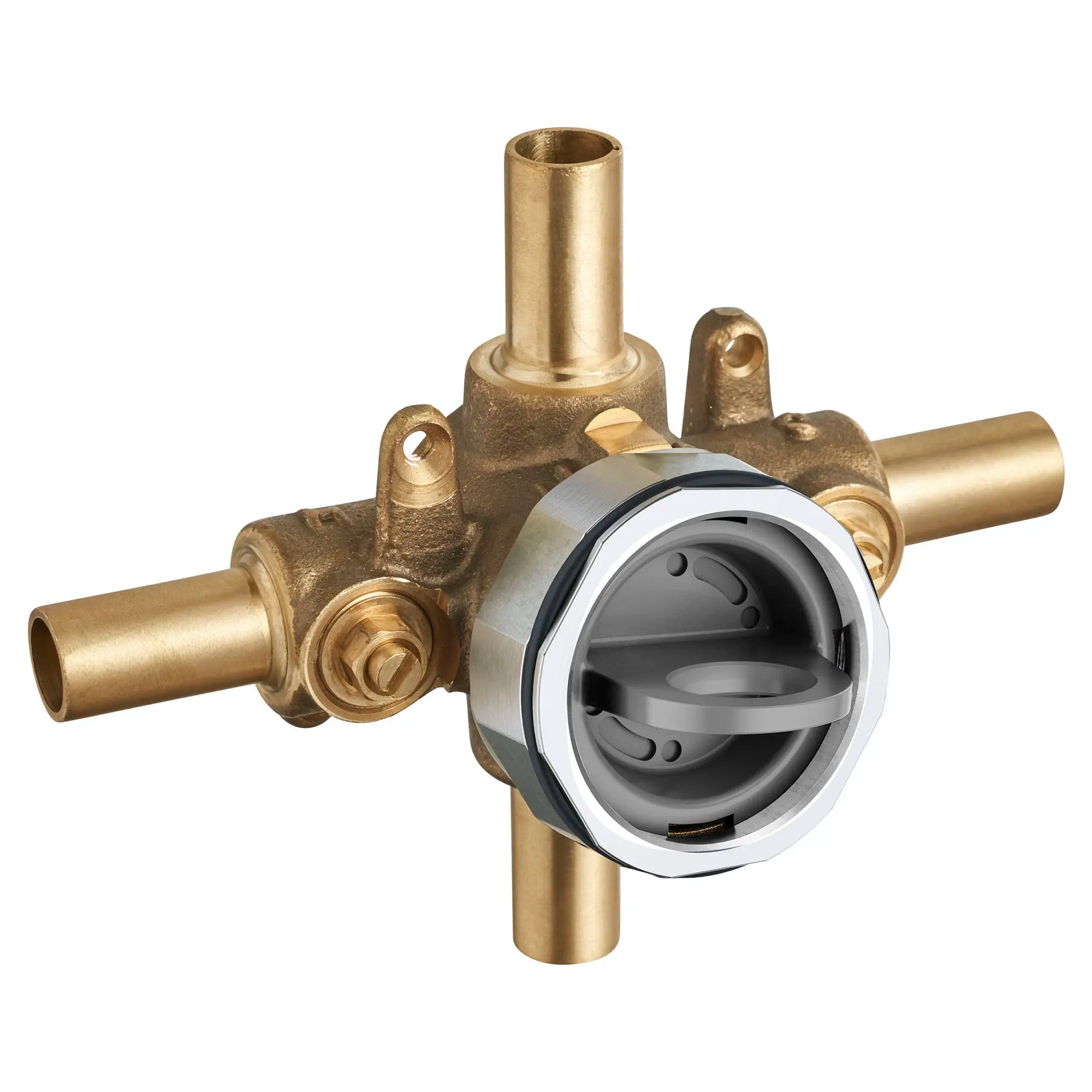

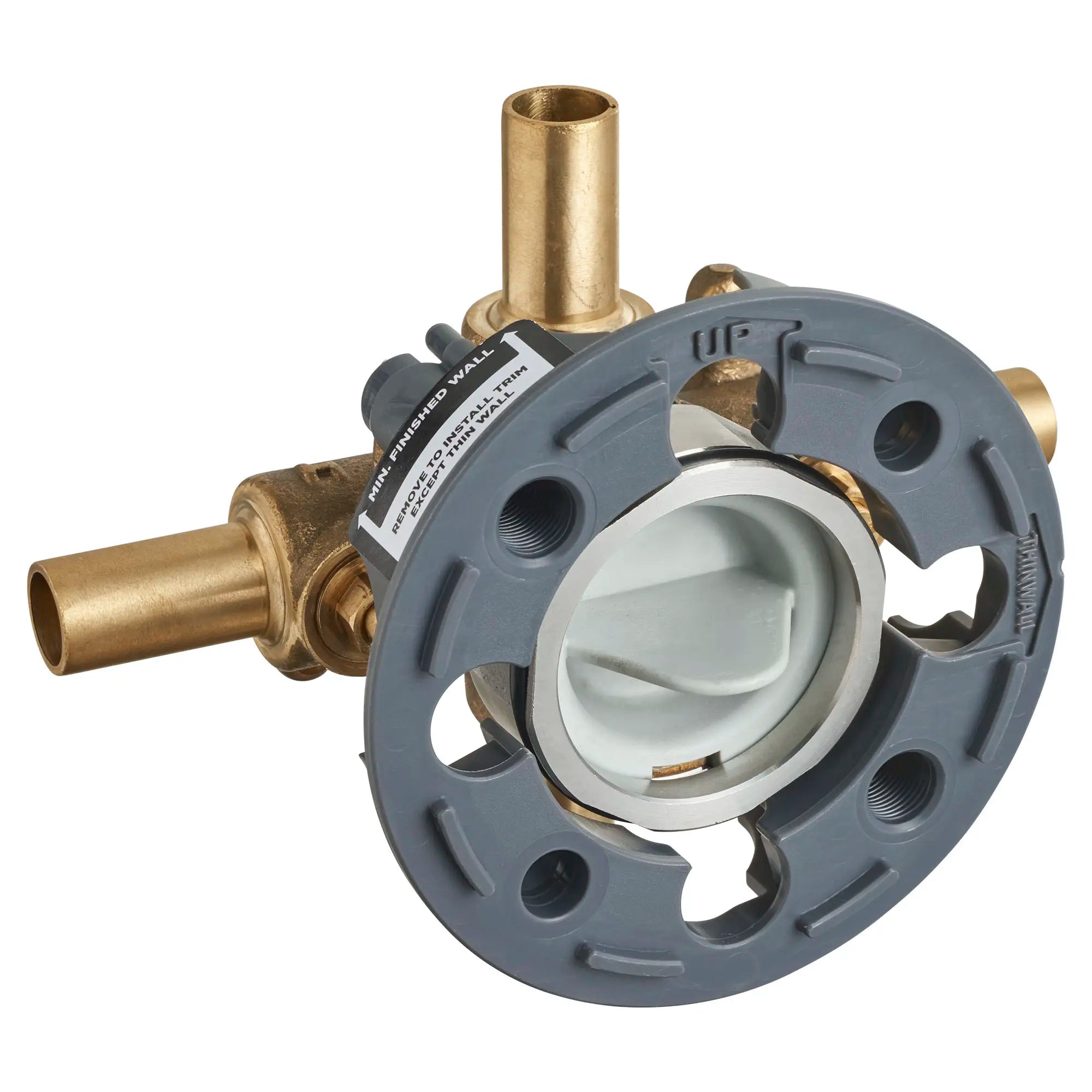

American RU102SS Flash Shower Rough-In Valve w/ Stub-Outs

Product Description

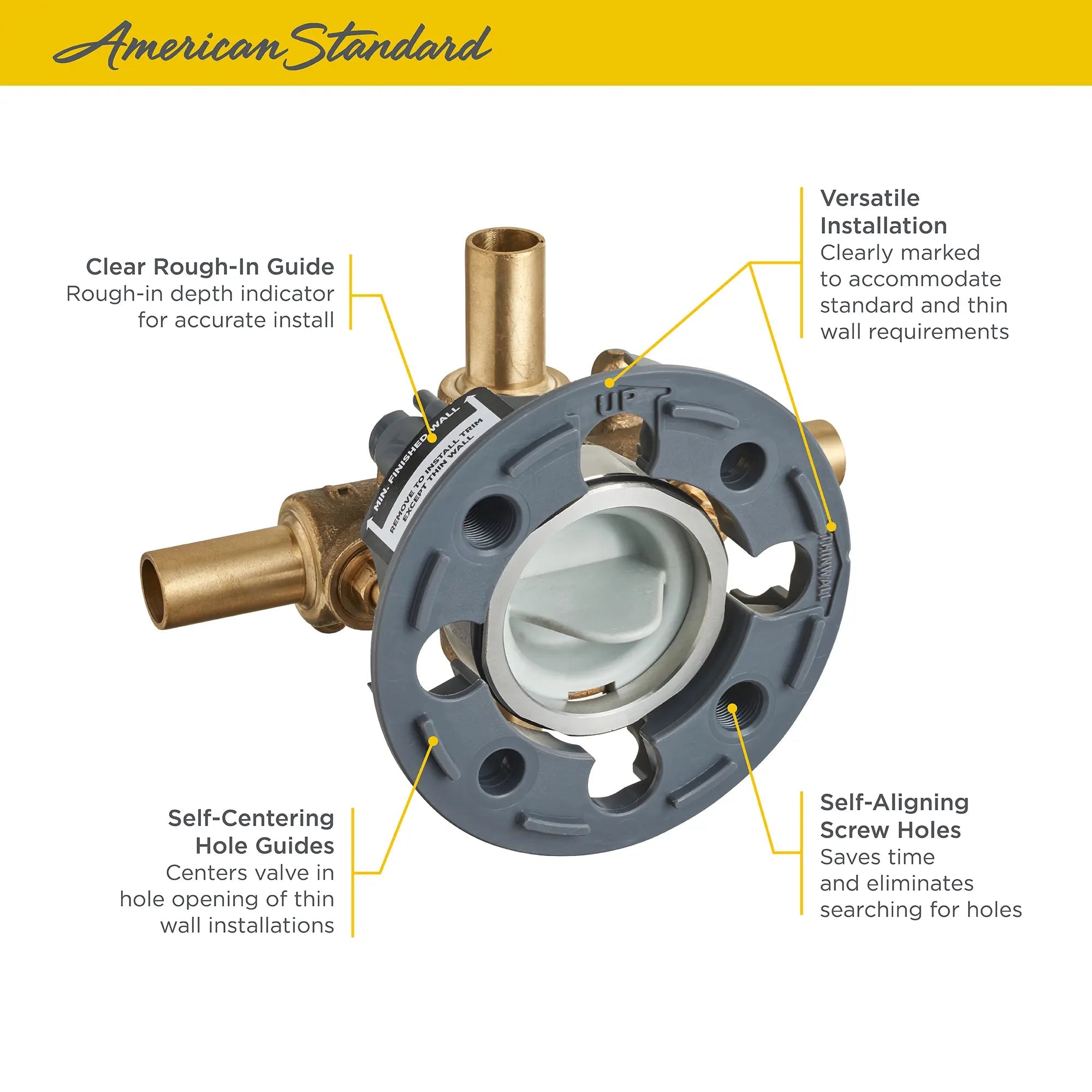

The American RU102SS Flash Shower Rough-In Valve is made for easy installation in various settings. The design includes a flat back and compact body, making it ideal for tight spaces. A unique flush plug allows for flushing of both hot and cold lines simultaneously. The stainless steel fixation ring effectively holds the plug in place without the need for screws.

• Features a flush plug for hassle-free installation.
• Includes a stainless steel retaining ring for secure assembly.
• Designed with stub-out connections for PEX fittings.

Product Highlights

This valve is excellent for residential applications, designed to simplify the installation process.

Product Information

Standard Information

• Material: Brass
• Application: Residential

Technical Specifications

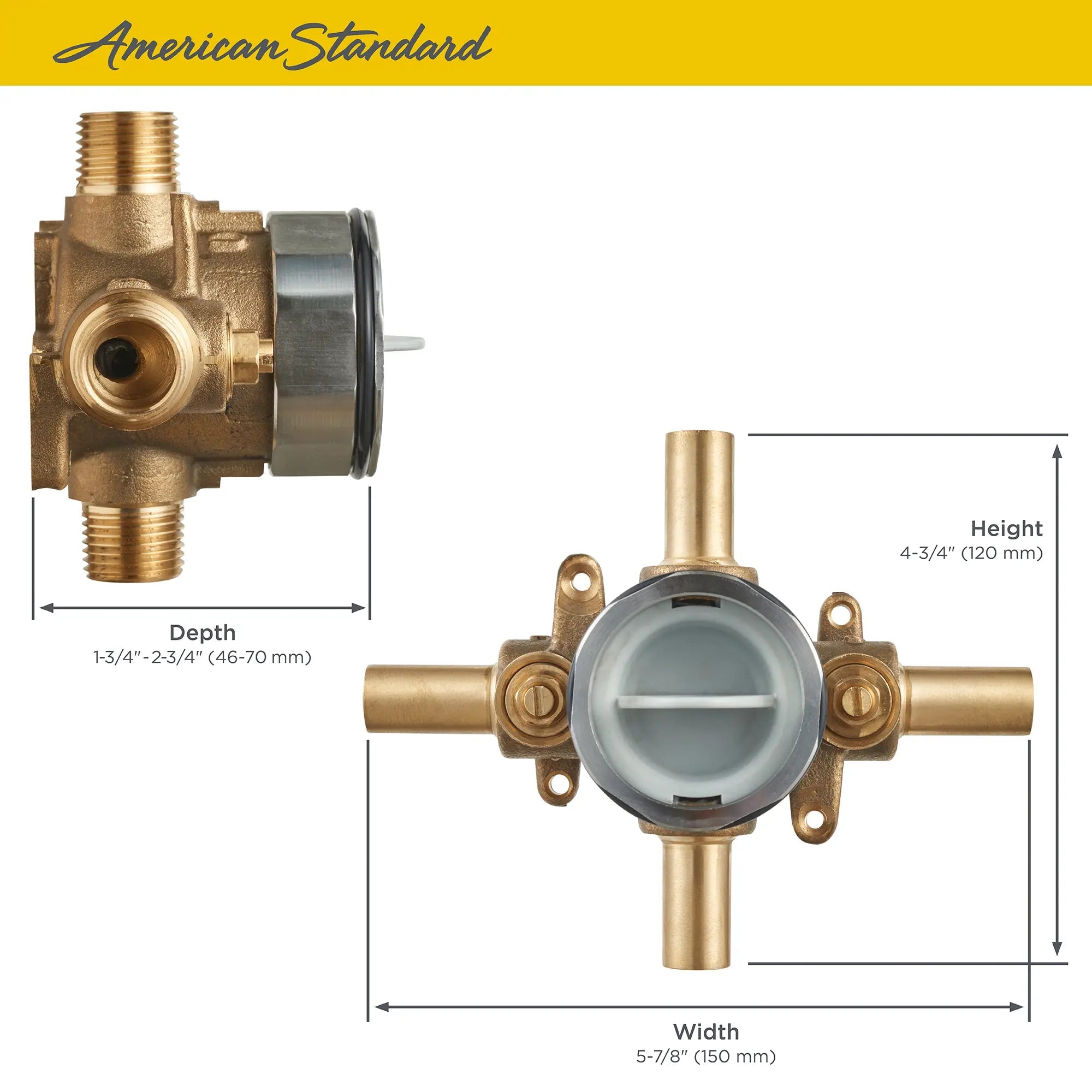

• Depth: 2.75 inches
• Width: 5.88 inches
• Height: 4.75 inches
• Fitting Connection Size: 1/2 inches
• Maximum Operating Pressure: 300 PSI
• Number of Ports: 1
• Included Components: Installation Guide
• Warranty Description: Limited Lifetime Warranty
• Valves Type: Pressure Balanced
