Product Description

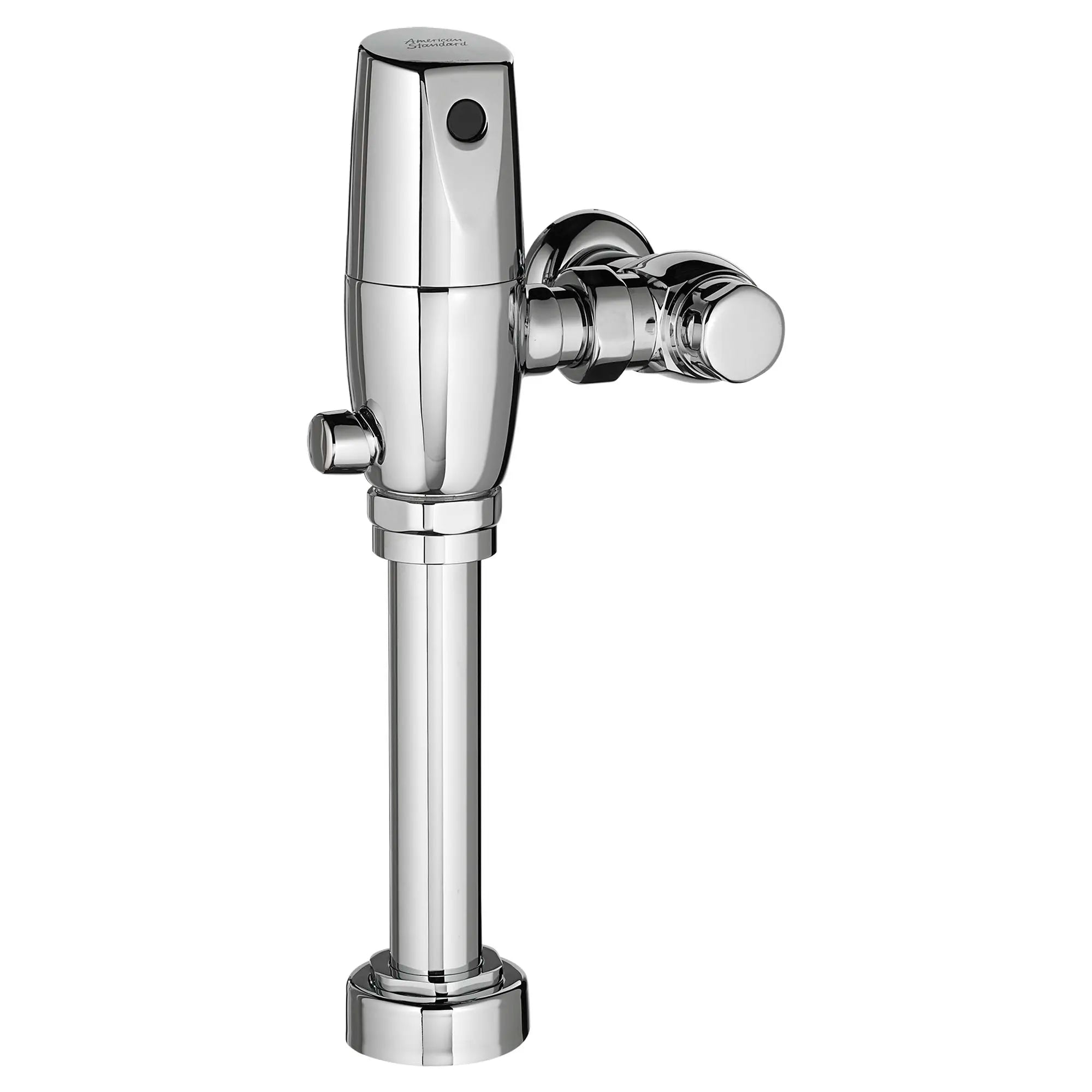

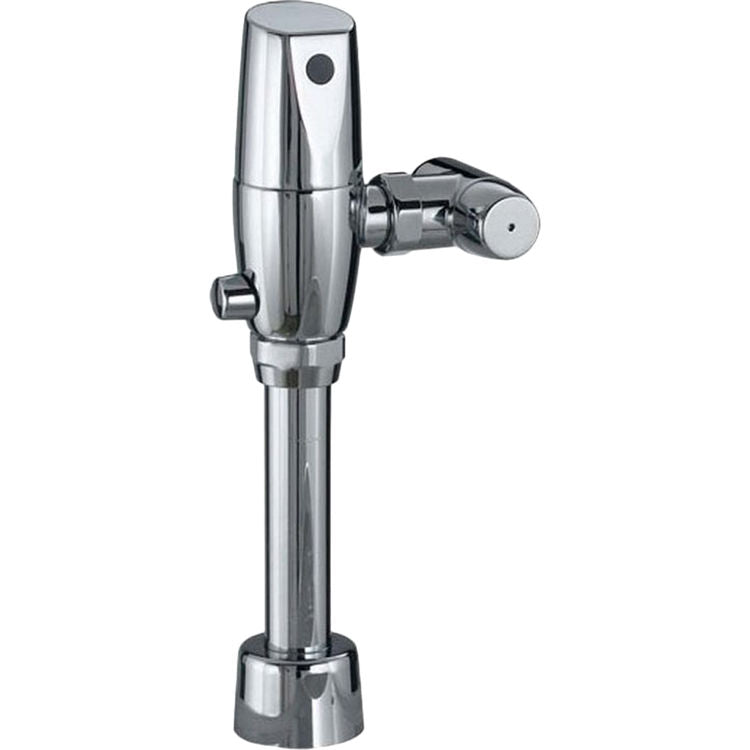

The AMERICAN 6065.761.002 is an exposed, sensor-operated toilet flush valve suitable for flushometer bowls with a 1-1/2 inch top spud. This model incorporates a self-cleaning piston design that minimizes maintenance needs. It ensures functionality even when power is lost, thanks to a mechanical manual override. The valve features dual flush options, allowing for efficient water usage with choices of 1.6 or 1.1 gallons per flush.
- Compatible with 1-1/2 inch exposed top spud toilet bowls.
- Includes touchless operation and a self-cleaning feature.
- Equipped with a manual override for use without power.
Product Highlights
The AMERICAN 6065.761.002 provides reliable performance in commercial environments with its dual flush system. This product is designed for easy installation and operation.
Product Information
Standard Information
-
Brand: AMERICAN
-
MPN: 6065.761.002
Technical Specifications
-
Product Collection: Selectronic
-
Flush Type: Dual Flush
-
Mounting Type: Wall Mount
-
Fixture Type: Toilet
-
Spud Size: 1.5 inches
-
Inlet Size: 1 inch
-
Rough-In: 11-1/2 inches
-
Spud Coupling: 1-1/2 inches
-
Gallons Per Flush: 1.6 or 1.1 GPF
-
Flow Rate: 1.1 - 1.6 GPF
-
Pressure Rating: 25 - 80 PSI
-
Connection Location: Top
-
Power Source: CR-P2 Lithium Battery
-
Sensor Range: 15-3/4 - 31-1/2 inches
-
Material: DZR Brass Body, Metal Cover
-
Finish/Color: Polished Chrome
-
Industry Standards: ASSE 1037, ANSI/ASME A112.19.2, ADA, CALGreen Compliant
-
Width: 2-7/8 inches
-
Height: 16 inches
-
Configuration: Exposed
-
Control Type: Electronic
-
Design Features: Dual Flush
-
Installation Type: Toilet
-
Spud Placement: Top
-
ADA Compliant: Yes
-
Approved for Commercial Use: Yes
-
CA Drought Compliant: Yes
-
Eco Friendly: Yes
-
TX Drought Compliant: Yes
-
WaterSense Certified: Yes
-
Batteries Included: Yes
-
Batteries Required: Yes
