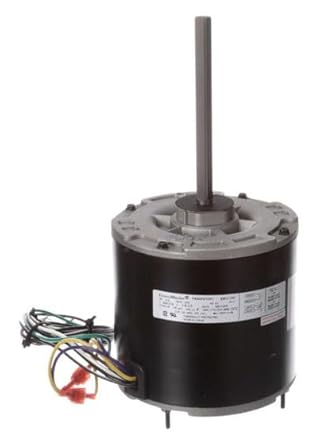

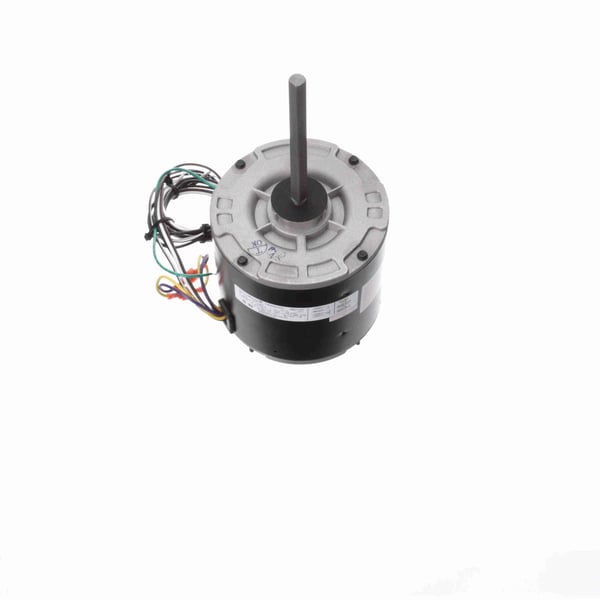

AMERICA EM3730F Condenser Fan Motor 1/2 hp 1075 RPM

Product Description

The AMERICA EM3730F is a condenser fan motor with a power rating of 1/2 horsepower, operating at 1075 RPM. This motor is suitable for residential systems and incorporates automatic overload protection to enhance safety. Its Class F insulation allows it to perform under high ambient temperatures. The design includes an easy rotation change feature, and it's totally enclosed to protect against debris. The motor is equipped with thirty-six inch leads and a five and five-eighths inch diameter, facilitating simple installation. Additionally, the motor thru bolts can be reversed for top mounting, providing versatility in installation.

• Operates at 1/2 hp with 3.5 amps at 208-230 volts
• Features a 1/2 inch by 6 inch shaft with reversible rotation
• Rated for high ambient temperatures up to seventy degrees Celsius

Product Highlights

Product Information

Standard Information

• Voltage: 230 Volts
• Phase: 1

Technical Specifications

• Speed: 1075 RPM
• Horsepower: 0.5 HP
• Current: 3.0-3.5 A
• Duty: Air Over
• Insulation Class: F
• Frame Material: Rolled Steel
• Overall Length: 11.67 inches
• Rotation: Reversible
