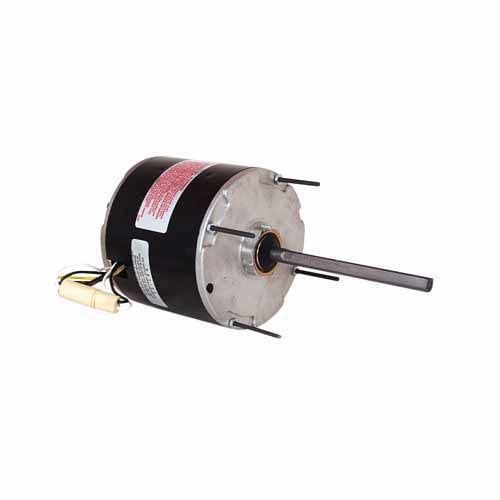

AMERICA EM3730 Condenser Motor 1/2 HP 1075 RPM Replacement EM3730

Product Description

The AMERICA EM3730 condenser motor is a reliable choice for residential applications. This motor offers a power rating of 1/2 horsepower and operates efficiently at 1075 revolutions per minute, utilizing a voltage range of 208-230 volts. It features ball bearing construction, enhancing both performance and durability.

• Ball bearing construction for reliability and quieter performance
• Compatible with FSE1056SF and FE1056SF motor series
• Designed for light-duty applications such as fans and heaters

Product Highlights

The AMERICA EM3730 is ideal for various condenser fan applications, ensuring effective and efficient operation.

Product Information

Standard Information

• Brand: AMERICA
• MPN: EM3730

Technical Specifications

• Voltage: 208-230 Volts
• Horsepower: 1/2 hp
• Speed: 1075 RPM
• Amperage Rating: 3.5 A
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Enclosure Type: Enclosed
• Frame: 48Y
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Mounting Type: Band/Stud
• Number of Speeds: 1
• Phase: 1
• Rotation: Reversible
• Shaft Size: 1/2 in Dia x 6 in L
• Temperature Rating: 60 deg C Ambient
