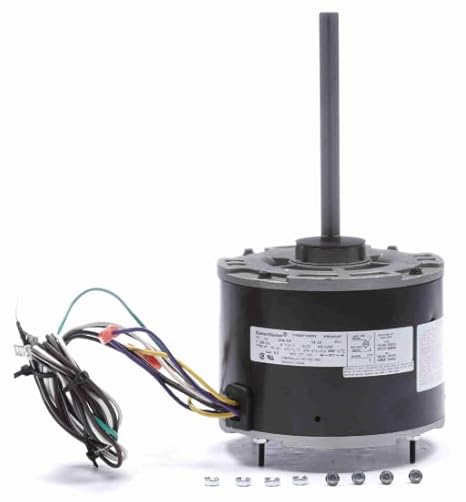

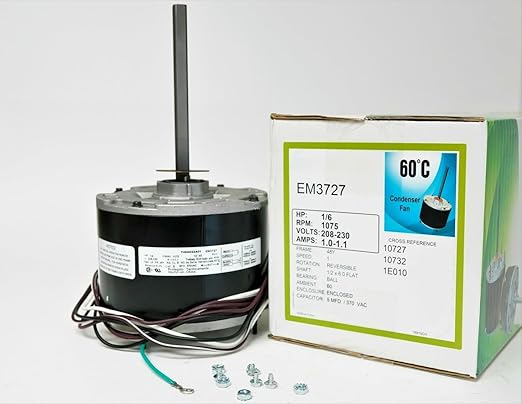

America EM3727 Condenser Fan Motor 1/6 Hp 1075 RPM Replacement EM3727

Product Description

The America EM3727 condenser fan motor features a one-sixth horsepower rating and a speed of 1075 revolutions per minute. This motor operates at 208-230 volts and is designed for continuous duty applications. With a diameter of five and five-eighths inches, it is suitable for residential installations. It includes belly band or stud mounting and has automatic overload protection.

• 1/6 hp with 1075 RPM and 1.1 amps
• Reversible rotation with easy installation options
• Requires a 5 MFD 370 volt capacitor (not included)

Product Highlights

The America EM3727 motor is a reliable choice for condenser applications, providing efficient performance with easy-to-change rotation settings.

Product Information

Standard Information

• Brand: America
• UPC: 777054712004

Technical Specifications

• Speed: 1075 RPM
• Voltage: 208-230 Volts
• Horsepower: 0.16
• Type: Permanent Split Capacitor (PSC)
• Amps: 1.1
• Enclosure: Totally Enclosed
• Rotation: Reversible
• Bearing: Sleeve
• Shaft Dimensions: 0.5 inches x 5.5 inches
• Body Length: 4 inches
• Diameter: 5.625 inches
