Product Description

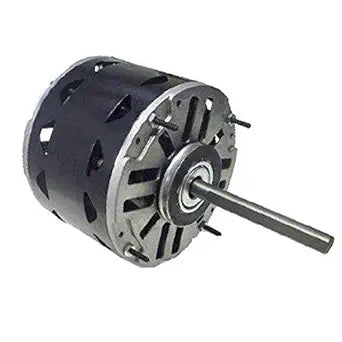

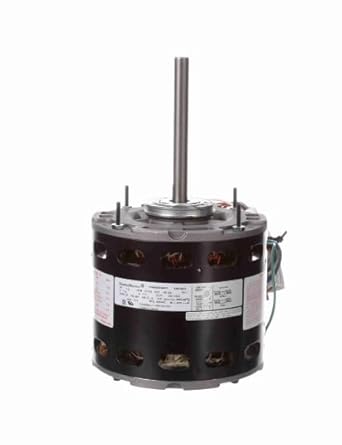

The AMERICA EM3586 is an aftermarket upgraded replacement furnace blower motor with a power rating of 1/3 HP and voltage of 208-230 volts. It is designed for use in furnace blowers, exhaust fans, and whole house fans, providing an effective solution for air circulation. This motor requires a 5 MFD 370V capacitor, which is not included.
- Aftermarket upgraded replacement
- 3-speed operation
- Power rating of 1/3 HP
Product Highlights
This blower motor is efficient for a variety of applications, making it suitable for both residential and commercial uses.
Product Information
Standard Information
-
Brand: Aftmk Rplm for EconoMaster
-
UPC: 786674019493
Technical Specifications
-
Voltage: 230 volts
-
Horsepower: 0.33 horsepower
-
Phase: 1
-
Output KW: 0.25 kW
-
Speed: 1075 rpm
-
Service Factor: 1
-
Frame: 48Y
-
Enclosure: Open Enclosed
-
Thermal Protection: Automatic
-
Ambient Temperature: 40 °C
-
Frequency: 60 Hz
-
Current: 2.5-1.6-1.2 A
-
Duty: Air Over
-
Insulation Class: B
-
UL: Recognized
-
CSA: Y
-
CE: N
-
Number of Speeds: 3
-
Electrical Type: Permanent Split Capacitor
-
Starting Method: Across The Line
-
Poles: 6
-
Rotation: Reversible
-
Mounting: Extended Studs
-
Motor Orientation: Horizontal
-
Drive End Bearing: Ball
-
Opp Drive End Bearing: Ball
-
Frame Material: Rolled Steel
-
Shaft Type: Flat
-
Overall Length: 9.36 inches
-
Frame Length: 4.49 inches
-
Shaft Diameter: 0.500 inches
-
Shaft Extension: 4.0 inches
