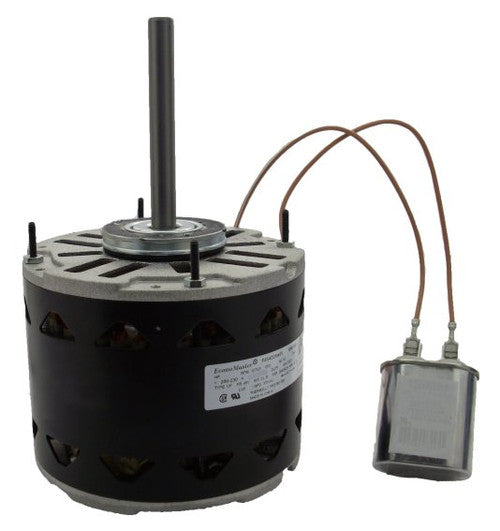

AMERICA EM3585 Direct Drive Furnace Motor 1/3 HP Replacement Genteq G3585

Product Description

The AMERICA EM3585 direct drive furnace blower motor is designed for use in furnace blowers, exhaust fans, and whole house fans. This motor has a power rating of 1/3 HP and operates at 1075 RPM. It runs on 115V and features three distinct speeds. The motor can be installed with reversible rotation for maximum flexibility.

• Direct drive furnace blower motor
• Reversible rotation for flexible installation
• Ideal for furnace blowers and exhaust fans

Product Highlights

This motor is engineered for continuous duty and requires a 7.5 MFD 370V capacitor, which is not included.

Product Information

Standard Information

• HP: 1/3
• RPM: 1075

Technical Specifications

• Speed: 3-Speed
• Frame: 48 Frame
• Voltage: 115V
• Application: Direct Drive Furnace Motor
• Amps: 5.5, 3.0, 2.0
• Body Diameter: 5-5/8 inches
• Shaft Diameter: 1/2 inches
• Shaft Length: 4-1/2 inches
• Rotation: Reversible
• Bearings: Sleeve Bearings
• Service Factor: 1.0
• Duty: Continuous Duty
• Capacitor Required: 7.5 MFD 370V (NOT INCLUDED)
• Motor Body Length: 4 5/16 inches
• Design: Air Over Design
• Wire Leads: 25 inches
