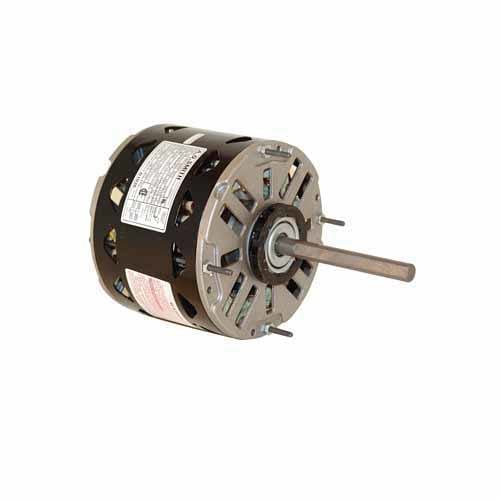

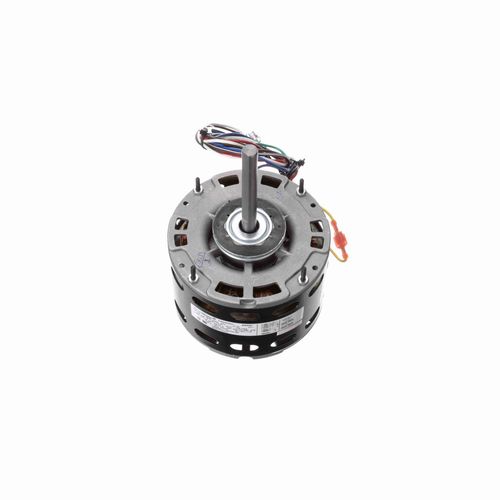

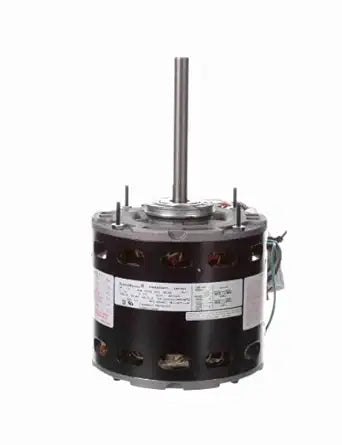

AMERICA EM3584 Fan and Blower Motor 1/4 HP

Product Description

The AMERICA EM3584 fan and blower motor is a one-fourth horsepower motor operating at 1075 RPM. This permanent split capacitor (PSC) motor is built with a 48Y frame. It has a robust rolled steel construction and features durable ball bearings. The motor is designed for horizontal mounting and is equipped with extended studs for easy installation. It functions on a voltage range of 208-230 volts and supports reversible rotation.

• Electrical Type: PSC
• Rotation: Reversible
• Mounting: Extended Studs

Product Highlights

The AMERICA EM3584 is suitable for various applications, particularly in fan and blower settings. Its effective design and durable materials make it a reliable choice for HVAC systems.

Product Information

Standard Information

• Horsepower: 1/4 hp
• Amperage: 1.9 - 1.1 - 0.9 A

Technical Specifications

• Voltage: 208-230 V
• Speed: 1075 RPM
• Frame: 48Y
• Enclosure: ODP
• Material: Rolled Steel
• Bearings Type: Ball
• Shaft Type: Flat
• Operating Temperature: 40 °C
• Duty Rating: Air Over
• Number of Speeds: 3
• Overall Length: 8.99 inches
• Shaft Extension: 4.000 inches
• Shaft Diameter: 0.500 inches
