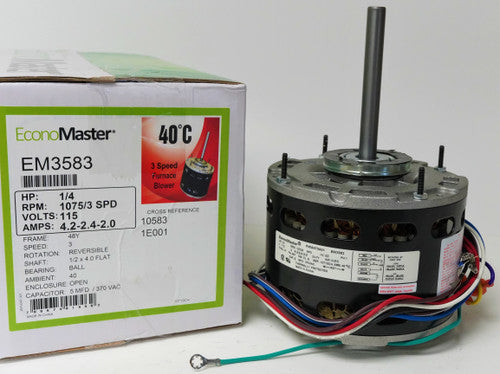

AMERICA EM3583 Century Pro-E Series Fan and Blower Motor 1/4 HP

Product Description

The AMERICA EM3583 Century PRO-E Series Fan and Blower Motor is a one-quarter horsepower motor. It is made for direct drive fan and blower operations. This motor operates at one hundred fifteen volts and sixty hertz, with a speed of one thousand seventy-five RPM. It is designed with three speed options, an open air over enclosure, and includes automatic thermal protection, which makes this motor suitable for HVAC systems and furnace applications.

• Permanent Split Capacitor motor design
• Thermally protected with Class B insulation
• Reversible rotation with ball bearing construction

Product Highlights

The AMERICA EM3583 is built for reliability in demanding environments, providing efficient operation and effective thermal management.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/4 HP

Technical Specifications

• Output KW: 0.19 kW
• Voltage: 115 V
• Speed: 1075 RPM
• Service Factor: 1
• Frame: 48Y
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 4.2-2.4-2.0 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 8.99 inches
• Frame Length: 3.99 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.0 inches
• Shaft Dimensions: 0.5 inches x 4.0 inches
