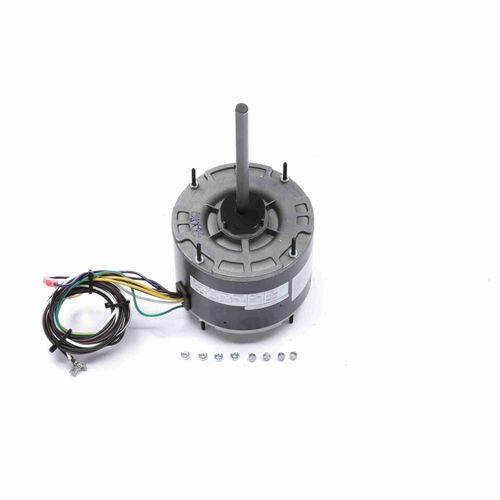

AMERICA EM3458F Condenser Fan Motor 1/3 HP

Product Description

The AMERICA EM3458F condenser fan motor provides reliable operation as a one-third horsepower unit with a speed of 1075 RPM. It is constructed with a TEAO enclosure and features rolled steel material for durability. The motor is suitable for various assemblies and includes extended studs for easy mounting.

• Electrical type: PSC
• Single-phase motor with reversible rotation
• Built-in thermal protection for safety

Product Highlights

This motor is designed for efficiency and versatility, making it suitable for different applications in HVAC systems.

Product Information

Standard Information

• Enclosure: TEAO
• Shaft Diameter: 0.500 inches

Technical Specifications

• Electrical Type: PSC
• HP: 1/3
• KW: 0.25
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Phase: Single
• Voltage: 208-230
• Rotation: Reversible
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Extended Studs
• Amperage: 1.8-2.0
• Shaft Type: Flat
• Shaft Extension: 6.700 inches
• Assembly: Any
• Frequency: 60 Hz
• Thermal Protection: Automatic
• Ambient Temperature: 70 °C
• Insulation Class: F
• Number of Speeds: 1
• Motor Orientation: Any
• Overall Length: 11.68 inches
• Frame Length: 4.19 inches
