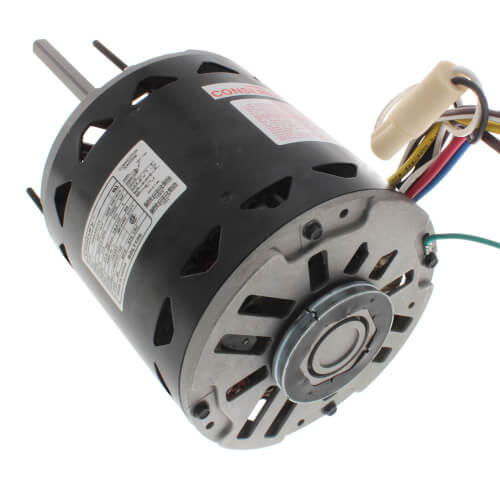

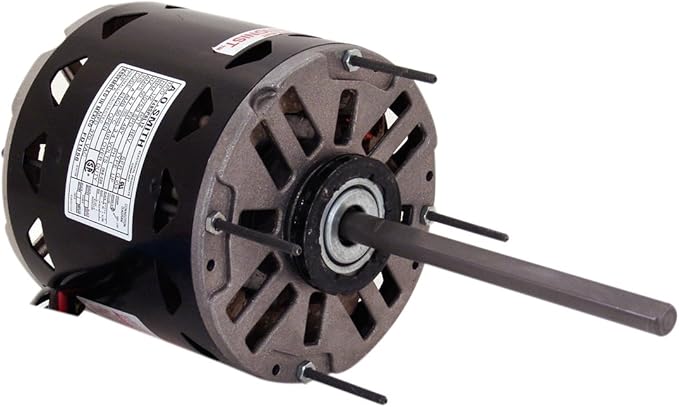

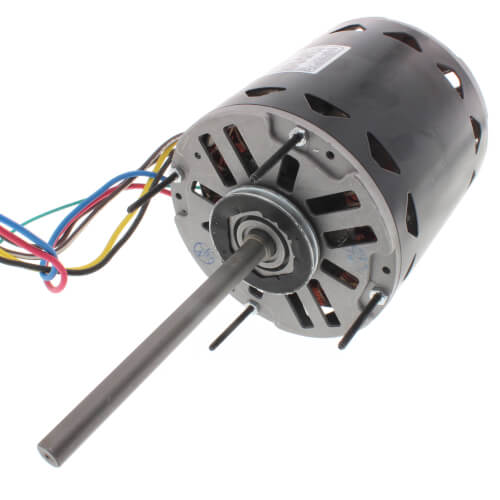

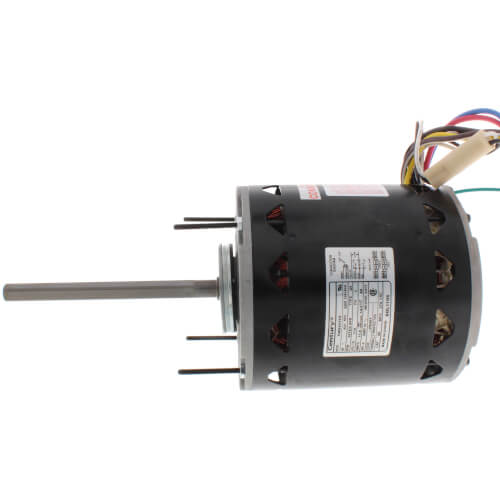

AMERICA BDL1106 Direct Drive Fan Blower Motor 1 HP 5-5/8 Inches

Product Description

The AMERICA BDL1106 is a direct drive fan and blower motor. It operates at 115V with a horsepower rating of 1. This motor runs at 1075 RPM and features three speeds. The design includes a permanent split capacitor and an auto protector, making it suitable for continuous air over applications. The motor is equipped with a 1/2-inch diameter flatted shaft and open construction, allowing for various mounting options. It operates at fifty-nine Hertz and fits a range of HVAC applications.

• Operates at 115V and 1075 RPM
• Features permanent split capacitor
• Designed with open construction and multiple mounting options

Product Highlights

The AMERICA BDL1106 is built for durability and reliability. Its robust design ensures efficient operation in air handling applications.

Product Information

Standard Information

• Brand: AMERICA
• MPN: BDL1106

Technical Specifications

• Type: Permanent Split Capacitor
• Horse Power: 1
• Voltage: 115V
• Duty: Air Over
• Rotation: Reversible
• Bearings: Ball
• Mount: Resilient Rings
• Poles: 6
• RPM: 1075
• Phase: 1
• Hertz: 60
• Enclosure Type: Open
• Frame: 48Y
• Insulation Class: B
• Speeds: 3
• Amperage: 11.6
• Overload Protection: Automatic
• Diameter: 5-5/8 inches
• Max Ambient Temp: 104 °F
• Motor Orientation: Horizontal
• Output KW: 0.75 kW
• Service Factor: 1
• Thermal Protection: Automatic
• Efficiency: 60.6 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 11.6 A
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 12.74 inches
• Frame Length: 5.25 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.4 inches
