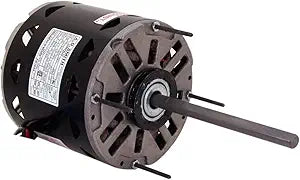

AMERICA BD1106 A.O. Smith 1 HP 1075 RPM Direct Drive Blower Motor

Product Description

The AMERICA BD1106 A.O. Smith direct drive blower motor is designed for efficient performance. It features reversible rotation, allowing flexibility in air flow direction. The motor comes with resilient mounting rings for durability and includes a reversing plug for easy installation. Operating at a voltage of 208-230 and at a speed of 1075 RPM, this motor is suitable for various applications in heating, ventilation, and air conditioning systems.

• Reversible rotation for versatile airflow
• Includes resilient mounting rings and a reversing plug
• Designed to operate in a 40 degree Celsius environment

Product Highlights

The blower motor is built to last with features such as thermal protection and automatic reset. It is perfect for both residential and commercial applications.

Product Information

Standard Information

• Brand: AMERICA
• Model Name: BD1106

Technical Specifications

• Speed: 1075 RPM
• Voltage: 208-230 Volts
• Horsepower: 1 HP
• Material: Copper
• Manufacturer: Century Electric/AO Smith Motors Co
• Part Number: BD1106
• Phase: 1
• Efficiency: 70%
• Frequency: 60 Hz
• Current: 4.8 A
• Mounting: Resilient Ring/Extended Studs
• Shaft Type: Double Flat
• Overall Length: 12.49 inches
• Frame Length: 5.00 inches
• Shaft Diameter: 0.500 inches
