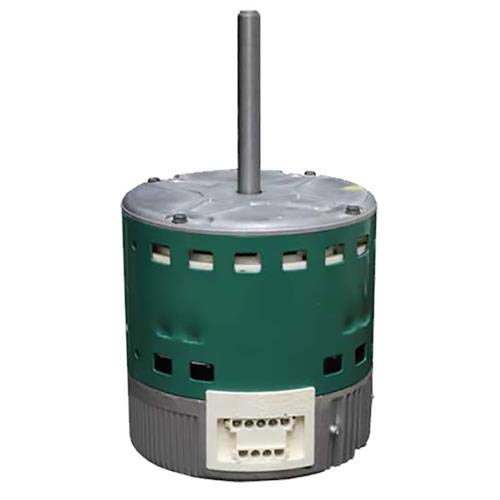

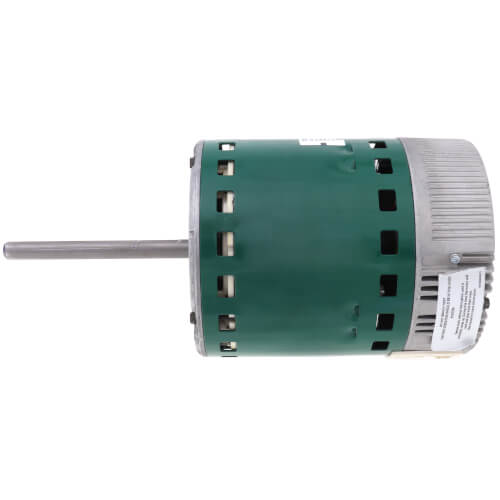

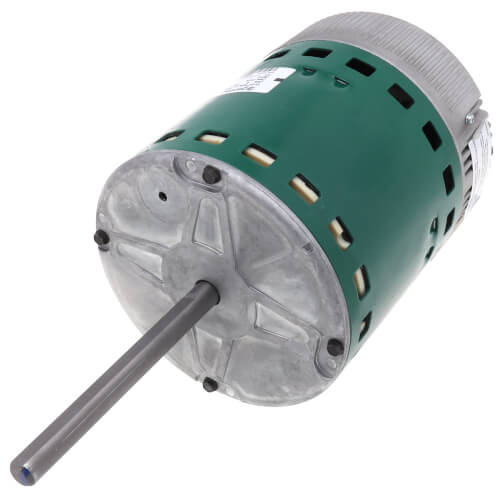

AMERICA 6507V Evergreen VS Motor 3/4 HP

Product Description

The AMERICA 6507V Evergreen VS motor is ideal for replacing Genteq constant airflow ECM indoor blower motors, specifically models 2.3, Eon, and 3.0. This motor operates at three quarter horsepower and supports dual voltage and rotation, ensuring compatibility with various setups.

• Pre-programmed for easy installation
• Offers plug-n-play functionality
• Features dual voltage and rotation

Product Highlights

This motor is built by the same manufacturer as the original, maintaining system performance and efficiency. Note that the Evergreen VS user interface 5K010 is required and sold separately when replacing Genteq motor models 2.3 or Eon.

Product Information

Standard Information

• Brand: AMERICA
• MPN: 6507V

Technical Specifications

• Horse Power: 3/4
• Voltage: 120/240V
• Type: ECM
• Rotation: CW/CCW
• Duty: Continuous Air Over
• RPM: 1050
• Amperage: 10.1/6.1
• FLA: 10.1/6.1
• Bearings: Ball
• Mount: Round
• Enclosure Type: Open Air Over
• Poles: 12
• Phase: 1
• Speeds: 1
• Overload Protection: None
• Insulation Class: B
• Frame: 48
• Max Ambient Temp: 104°F
• Motor Orientation: Vertical Shaft Down
• Horsepower: 0.75
